Vendor: JGB Private Brand

Category: Spray Hose

---

Application:

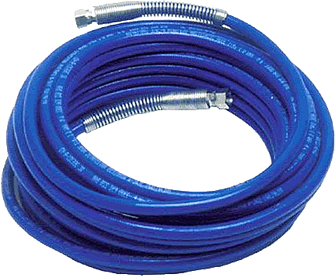

A high pressure conductive hose suitable for conveying paints, fuels, oils, and most other solvents.
EZ Kote™ is recommended for applications where an electrostatic charge must be eliminated.

Tube:

Extruded, seamless nylon.

Reinforcement:

High tensile synthetic.

Cover:

Abrasion-resistant polyurethane.

Temperature:

0° to 200°F

Packaging:

Cut to length and coupled.

Branding:

E-Z Kote® Wireless Antistatic Hose 1/4" ID Max W.P. 3300psi 228bar

Couplings:

1/4" or 3/8" female swivels; male NPT with spring guards.

Lengths:

Made to order lengths available in all sizes.
1/4" 25 ft, 50 ft assemblies.
3/8" 50 ft assemblies.
3/16" Whip hose in 3 ft, 5 ft, or 6 ft lengths.

Features:

• Special construction keeps hose lightweight and flexible.
• A special static drain element dissipates static charge.
• Date coding on the coupling provides traceability.
• A high pressure conductive hose

Part #	Nom ID	Nom OD	Bend Radius	Min Burst	WP	Weight	Request Quote
	in	in	in	psi	psi	lbs/100ft
016-0032-350P	3/16	.432	1.8	14,000	3500	4.8	Request Quote
016-0046-330P	1/4	.491	2.5	13,200	3300	5.0	Request Quote
016-0060-300P	3/8	.660	3.5	13,200	3300	8.7	Request Quote

---
