Vendor: Parker Industrial

Category: Chemical Hose    Sub Type: Chemical Transfer Hose

---

Application:

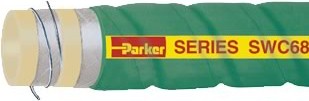

TITANFLEX® Modified XLPE Chemical Hose
Series SWC683 (Black) and Series SWC683G (Green)

• Acids, chemicals, solvents
• In-plant tank transfer
• Delivery, transport

Series SWC683/SWC683G is a flexible, lightweight, high pressure, high temperature suction and discharge hose designed to handle many commonly used acids, chemicals and solvents. The modified cross-linked polyethylene (MXLPE) tube will not leach into and contaminate the product being conveyed, and features a temperature rating to 250°F (121°C). Series SWC683/SWC683G can be cleaned with a 10% alkali bath, hot water or low pressure steam. The corrugated hose construction incorporates a dual wire helix that provides full suction capability, flexibility, kink resistance and a path to conduct a static electrical charge to ground, and is suitable for use with internally expanded couplings. The cover is resistant to abrasion, mild chemicals and ozone.

NOTES: Contact JGB for additional chemical compatibility information.

Design Factor:  4:1
Vacuum:  Full
Industry Standards:  None applicable

Tube:

Tan modified cross-linked polyethylene (MXLPE)

Reinforcement:

Multiple textile plies with dual wire helix

Cover:

SWC683: Black EPDM, corrugated wrapped finish
SWC683G: Green EPDM, corrugated wrapped finish

Temperature:

-40°F to +250°F (-40°C to +121°C)

Packaging:

Coils

Branding:

PARKER SERIES SWC683 (SWC683G) TITANFLEX® MOD XLPE CHEMICAL SUCTION XXX PSI WP MADE IN USA

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Colors:

Green or black with yellow stripe

Part Number	ID	ID	Reinf Plies	OD	OD	Approx Wt	Min Bend Rad	Max Rec WP	Std Pack	Request Quote
	(in)	(mm)		(in)	(mm)	(lbs/ft)	(in)	(psi)	Qty (ft)
SWC683-1000	1	25.4	2	1.500	38.1	0.49	2.0	250	100	Request Quote
SWC683-1500	1-1/2	38.1	2	2.031	51.6	0.71	3.0	250	100	Request Quote
SWC683-2000	2	50.8	2	2.563	65.1	1.05	4.0	250	100	Request Quote
SWC683-2500	2-1/2	63.5	2	3.015	76.6	1.47	5.0	200	100	Request Quote
SWC683-3000	3	76.2	2	3.625	92.1	1.93	6.0	200	100	Request Quote
SWC683-4000	4	101.6	2	4.625	117.5	2.60	8.0	175	100	Request Quote
SWC683-6000	6	152.4	2	6.750	171.5	4.22	18.0	125	100	Request Quote
SWC683G-1000	1	25.4	2	1.500	38.1	0.49	2.0	250	100	Request Quote
SWC683G-1500	1-1/2	38.1	2	2.031	51.6	0.71	3.0	250	100	Request Quote
SWC683G-2000	2	50.8	2	2.563	65.1	1.05	4.0	250	100	Request Quote
SWC683G-2500	2-1/2	63.5	2	3.015	76.6	1.47	5.0	200	100	Request Quote
SWC683G-3000	3	76.2	2	3.625	92.1	1.93	6.0	200	100	Request Quote
SWC683G-4000	4	101.6	2	4.625	117.5	2.60	8.0	175	100	Request Quote

WARNINGS! It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact JGB for chemical compatibility data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature. At operating temperatures of 125°F and above, only permanently attached couplings should be installed. At any operating temperature, couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.

---
