Vendor: Novaflex

Category: Sanitary Food Grade    Sub Type: General Food Hose

---

Application:

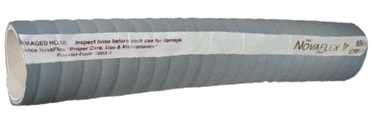

The same hose as Novaflex 6500 but with a corrugated cover. The special smooth chlorobutyl bacteria resistant tube is designed for non-oily products and will not impart odor or taste.
Meets FDA, USDA & 3-A.

Tube:

White chlorobutyl (non oily applications)

Reinforcement:

Multiple plies of tire cord

Cover:

Grey EPDM

Temperature:

-40°F (-40°C) to +240°F +116°C)
(Cleaning In Place to 248°F (+120°C)

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Lengths:

100 ft.

Part No.	I.D.	MBR (in)	Plies	WP psi	WT LBS/FT	Request Quote
6503WB-02000-00	2	7	2	150	0.95	Request Quote
6503WB-02500-00	2-1/2	8	2	150	1.19	Request Quote
6503WB-03000-00	3	9	2	150	1.51	Request Quote
6503WB-04000-00	4	12	2	150	1.98	Request Quote

Not for continuous steam service.

---
