Vendor: Novaflex

Category: Sanitary Food Grade    Sub Type: General Food Hose

---

Application:

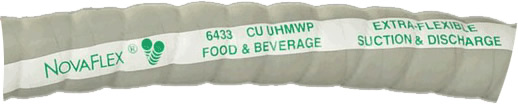

Extra Flexible White UHMW Tube EPDM Food Suction & Discharge Hose
Recommended for special applications that require smooth tubes and easy to clean surfaces. Recommended for the food transfer application that demands flexibility and ruggedness with a clean whit FDA ultra high molecular weight polyethylene grade tube. This food grade tube is odorless and tasteless for all those all purpose transfer applications. This ultras smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness.

Tube:

White FDA UHMW - odorless and tasteless (nonoily applications)

Reinforcement:

Multiple plies of polyester tire cord with helix wire

Cover:

Grey EPDM Corrugated

Temperature:

-40°F (-40°C) to +225°F (+116°C)
Cleaning in Place to 248°F (+120°C)

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Lengths:

100 ft.

Part No.	I.D.	O.D.	Max CP PSI	Bend Radius	Vacuum HG	CT LBS/FT	Request Quote
6433CU-01500-00	1-1/2	2.03	200	2”	29”	0.91	Request Quote
6433CU-02000-00	2	2.53	200	3”	29”	1.16	Request Quote
6433CU-03000-00	3	3.74	200	5”	29”	2.48	Request Quote
6433CU-04000-00	4	4.76	200	6.5”	29”	3.31	Request Quote

Nova-Glide cover

Part No.	I.D.	O.D.	CP PSI	MBR	CT LBS/FT	Request Quote
6433CUU-01500-00	1-1/2	2.06	150	2.5”	0.93	Request Quote
6433CUU-02000-00	2	2.57	150	3.5”	1.2	Request Quote
6433CUU-03000-00	3	3.71	150	6.5”	2.53	Request Quote
6433CUU-04000-00	4	4.79	150	8.5”	3.39	Request Quote

Not for continuous steam service

---
