Jackson Industries - MTLC - Metal Hose Lined With a Smooth Bore PTFE Liner
Vendor: Jackson Industries
Category: Fluoropolymer Hose
| Applications: |
Available as factory-built and tested assemblies only. |
| Construction: |

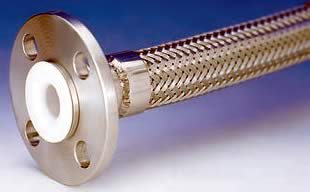

The construction of an MTLC hose begins with flanged metal hose braided with stainless steel. A smooth inner liner of extruded PTFE is ed into the hose, locked in place, and flared over the flange faces. This PTFE liner is stationary and will not move within the hose. Vent holes in the ends prevent gas build-up between layers.
|
| Benefits: |
|
| Temperature Rating: | -65°F (-54°C) to +350°F (+176°C) |
| Part Number | Nominal Hose Size (in) |
Max Working Pressure* |
Min Burst Pressure |
Vacuum Rating HG* |
Approx. Weight/Ft. |
Request Quote | |
| ID | OD | ||||||
| MTLC-16 | 1.00 | 1.64 | 500 PSI | 2000 PSI | 26 | 2.00 lbs. | Request Quote |
| MTLC-24 | 1.50 | 2.33 | 400 PSI | 1600 PSI | 26 | 3.86 lbs. | Request Quote |
| MTLC-32 | 2.00 | 2.88 | 300 PSI | 1200 PSI | 24 | 5.00 lbs. | Request Quote |
| MTLC-48 | 3.00 | 3.94 | 200 PSI | 800 PSI | 24 | 5.25 lbs. | Request Quote |
| MTLC-64 | 4.00 | 4.98 | 150 PSI | 600 PSI | 20 | 5.60 lbs. | Request Quote |
| MTLC-96 | 6.00 | 7.00 | 150 PSI | 600 PSI | 20 | 13.00 lbs. | Request Quote |
| MTLC-128 | 8.00 | 9.10 | 125 PSI | 500 PSI | 20 | 20.00 lbs. | Request Quote |
| MTLC-160 | 10.00 | 11.20 | 100 PSI | 400 PSI | 20 | 26.00 lbs. | Request Quote |
| MTLC-192 | 12.00 | 13.22 | 90 PSI | 360 PSI | 20 | 34.50 lbs. | Request Quote |
All pressures calculated at 70°F. Please consult JGB regarding flexibility
restrictions
 |
