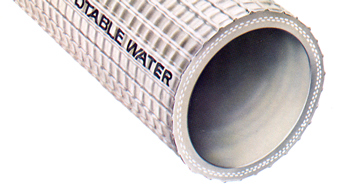

Uniroyal - Hardwall Potable Water Hose
Vendor: Uniroyal
Category: Water Hose
Sub Type: Water Suction & Discharge Hose
Application:
A white, flexible hardwall suction and discharge hose suitable for potable water and non-oil-based dry and wet food grade substances. Uses range from food processing equipment, water replenishment service in trucks, ships, trains and planes, to the bulk transfer of dry or liquid flowable ladings for human consumption.
Features:
Non-toxic FDA White Listed, tube and cover imparts no taste, odor or discoloration to conveyed fluids. High strength to withstand the vibration and pounding when used to convey dry foodstuffs where static electricity buildup is not a problem. Easily cleaned with hot water and mild detergents. Crush and kink-resistant. Retains flexibility and vacuum characteristics at temperatures from - 20° to 180°F ( - 29° to 82°C). Abrasion and scuff-resistant white cover, ribbed for sure grip and reduced drag.
Tube:
High tensile polyester
Reinforcement:
Embedded helically wound wire reinforcement
Cover:
Embedded white cover
Temperature:
-20° to 180°F
Couplings:
Combination nipple, long and short shank and quick acting couplings with appropriate bend-type clamps. Two or three serrations recommended on shanks. Coupling material must be compatible with fluids conveyed.
Colors:
White
| Nominal inside diameter | Nominal outside diameter | Maximum working pressure | Approx. weight w/o fittings | Minimum bend radius | Request a Quote | |||||
| (in.) | (mm) | (in.) | (mm) | (psi) | (MPa) | (lbs/ft) | (kg/m) | (in.) | (mm) | |
| 1-1/2 | 38.1 | 2 | 50.8 | 300 | 2.07 | .80 | 1.191 | 6 | 152 | Request Quote |
| 2 | 50.8 | 2-1/2 | 63.5 | 300 | 2.07 | 1.10 | 1.652 | 8 | 203 | Request Quote |
| 2-1/2 | 63.5 | 3 | 76.2 | 300 | 2.07 | 1.34 | 1.994 | 10 | 254 | Request Quote |
| 3 | 76.2 | 3-9/16 | 90.5 | 250 | 1.72 | 2.00 | 2.992 | 12 | 305 | Request Quote |
| 4 | 102 | 4-5/8 | 117.5 | 200 | 1.38 | 2.78 | 4.167 | 16 | 406 | Request Quote |
 |
