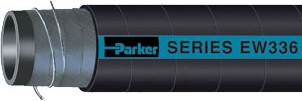

Exacta Pipe Material Handling Hose - Series EW336

Types:
Material Handling Hose     Sub Type: Material Handling Abrasives and Corrosives hose

Vendor: Parker Industrial

Application:

Exacta Pipe Material Handling Hose
Suction / Vacuum 1/4" Natural Rubber Tube
Series EW336 Custom Made Hose

• Abrasive materials, debris, water
• Construction, general industrial

Series EW336 is a general purpose suction and discharge hose for highly abrasive materials. The 1/4" natural rubber tube provides excellent abrasion resistance, durability and rebound, and the wire helix provides full suction capability, kink resistance and a path to conduct a static charge to ground. The SBR cover is resistant to abrasion, cuts, scuffs and weathering.

NOTES:

• For higher working pressure hose, refer to Series SW336; for 3/8" tube, refer to Series EW337; for 1/2" tube, refer to Series EW340.
• Other customized versions of this product are available. Contact JGB.

Design Factor:  4:1
Vacuum:  Full
Industry Standards:  None applicable

Tube:

1/4" Natural rubber

Reinforcement:

Multiple plies of tire cord with wire helix

Cover:

Black SBR; wrapped finish

Temperature:

-40°F to +150°F (-40°C to +66°C)

Packaging:

Lengths or coils in bales, crates or slat packs

Branding:

PARKER SERIES EW336 EXACTA PIPE MATERIAL SUCTION HOSE

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Colors:

Black with blue stripe

Part No.	ID	ID	Reinf Plies	OD	OD	Approx Wt	Approx Wt	Min Bend Rad	Max Rec WP	Max Rec WP	Max Lg	Request Quote
	(in)	(mm)		(in)	(mm)	(lbs/ft)	(kg/ft)	(in)	(psi)	(bar)	(ft)
EW336-4000	4	101.6	4	5.125	130.2	4.5	2.04	24	100	6.9	100	Request Quote
EW336-5000	5	127	4	6.125	155.6	5.8	2.63	30	100	6.9	100	Request Quote
EW336-6000	6	152.4	4	7.125	181	7.1	3.22	36	100	6.9	100	Request Quote
EW336-6625	6-5/8	168.3	4	7.75	196.9	7.8	3.54	40	100	6.9	100	Request Quote
EW336-8000	8	203.2	4	9.25	235	11.75	5.33	48	100	6.9	50	Request Quote
EW336-8625	8-5/8	219.1	4	9.875	250.8	12.5	5.67	52	100	6.9	50	Request Quote
EW336-10000	10	254	4	11.375	288.9	15	6.8	60	100	6.9	50	Request Quote
EW336-10750	10-3/4	273.1	4	12.25	311.2	20.2	9.16	65	100	6.9	50	Request Quote
EW336-12000	12	304.8	4	13.5	342.9	22.5	10.2	72	100	6.9	50	Request Quote
EW336-12750	12-3/4	323.9	4	14.25	362	23.8	10.8	77	100	6.9	50	Request Quote
EW336-14000	14	355.6	6	15.5	393.7	27.5	12.47	84	100	6.9	50	Request Quote
