Kuriyama

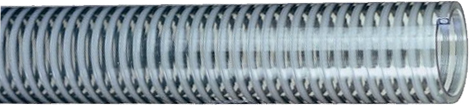

Tigerflex Tiger Suction F Series Heavy Duty PVC Suction Hose

Types:
Special Application

Vendor: Kuriyama

Application:

• Irrigation lines
• Pumps, rental and construction dewatering
• Pumps, trash
• Water suction – heavy duty

Features and Advantages

• Transparent Construction – "See-the-flow." Allows for visual confirmation of material flow.
• Smooth Outer Cover – Provides increased pressure rating and smooth surface for banding.
• Convoluted Outer Cover (Sizes 6" & 8") – Provides increased hose flexibility.
• Phthalate Free

Note: Service life may vary depending on operating conditions and type of material being conveyed.

Tube:

PVC

Reinforcement:

Rigid PVC helix

Temperature:

-4 to 150°F (-20 to +65°C)
Actual service temperature range is application-dependent.

Category:

Tigerflex®

Series Number	ID	OD	Working Pressure at 68ºF	Working Pressure at 104ºF	Vacuum Rating at 68ºF	Vacuum Rating at 104ºF	Min. Bending Radius at 68ºF	Standard Length	Weight	Request a Quote
	in mm	in mm	psi	psi	inHg	inHg	in	ft	lbs/ft
F075X100	3/4 19.0	1.01 25.6	115	75	FULL	28	3	100	0.21	Request Quote
F100X100	1 25.4	1.26 32.0	100	65	FULL	28	3	100	0.27	Request Quote
F125X100	1 1/4 31.7	1.56 39.6	100	65	FULL	26	4	100	0.36	Request Quote
F150X100	1 1/2 38.1	1.83 46.5	100	65	FULL	26	5	100	0.48	Request Quote
F200X100	2 50.8	2.38 60.4	100	65	FULL	26	7	100	0.71	Request Quote
F250X100	2 1/2 63.5	2.89 73.4	70	48	FULL	26	8	100	0.96	Request Quote
F300X100	3 76.2	3.44 87.4	70	45	FULL	26	10	100	1.25	Request Quote
F400X100	4 101.6	4.57 116.1	60	40	FULL	26	15	100	1.95	Request Quote
F600X100	6 152.4	6.77 172.0	40	25	28	22	25	100	3.76	Request Quote
F600X20	6 152.4	6.77 172.0	40	25	28	22	25	20	3.76	Request Quote
F800X20	8 203.2	8.90 226.1	30	20	28	18	30	20	6	Request Quote

Phthalate Free⁽¹⁰⁾, RoHS⁽¹¹⁾
