Kuriyama
PNEU-THANE Series K5090 / K5094 / K5096 Pneumatic Air Tool Hose

Types:
Air and Multipurpose Hose

Vendor: Kuriyama

Application:

PNEU-THANE™ Series K5090/K5094/K5096 — An extremely lightweight, tough, flexible pneumatic air tool hose that is suitable for a wide range of industrial and construction applications.

• For use with pneumatic air tools such as roofing nailers, sanders, chippers, impact wrenches, screwdrivers and staplers.
• In-plant assembly line air service.
• Automotive repair and body shops.
• Construction sites.
• Marine applications.
• Air service for spray painting equipment.

Features:

• Very lightweight and flexible . . . helps to cut down on work-related injuries.
• Good flex fatigue and resilience characteristics.
• Excellent resistance to oils and solvents.
• High oil resistance, complies with ARPM’s Class A Designation.
• Superior cut-resistance.
• High abrasion-resistance . . . provides extra long life compared with conventional PVC or rubber air hoses.
• Good resistance to hydrolysis and algae in warm water applications.
• Silicone-free core and cover.
• Non-conductive compounds.
• Non-marking cover.
• One-piece lengths.
• Individually shrink-wrapped assemblies are available,contact JGB
• RoHS⁽¹⁶⁾ compliant.
• Phthalate Free!

Tube:

Clear ether-based polyurethane

Reinforcement:

High tensile strength yarn

Cover:

Ether-based polyurethane

Temperature:

-40 to 185 ºF
-40 to 85 ºC

Category:

Kuri Tec®

Colors:

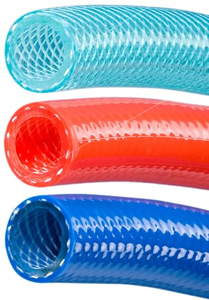

Available in three colors: K5090 – Turquoise Tint, K5094 – Red, K5096 – Blue.

Item #

Standard Stock Color

Size Code

Nominal ID

Nominal OD

Maximum Working Pressure at 70 ºF (20 ºC)

Maximum Working Pressure at 122 ºF (50 ºC)

Standard Lengths

Packaging

Approx. Wt. Per Pkg.

Request a Quote

in

mm

in

mm

psi

psi

ft.

lbs

K5090-04X100

Turquoise Tint

4

1/4

6.5

0.395

10.0

250 psi

200 psi

100 ft

Coil/ Box

4 lb

Request Quote

K5090-04X500

Turquoise Tint

4

1/4

6.5

0.395

10.0

250 psi

200 psi

500 ft

Reel

27 lb

Request Quote

K5090-06X100

Turquoise Tint

6

3/8

9.5

0.560

14.2

250 psi

200 psi

100 ft

Coil/ Box

8 lb

Request Quote

K5090-06X500

Turquoise Tint

6

3/8

9.5

0.560

14.2

250 psi

200 psi

500 ft

Reel

47 lb

Request Quote

K5090-08X100

Turquoise Tint

8

1/2

12.5

0.688

17.5

250 psi

200 psi

100 ft

Coil/ Box

10 lb

Request Quote

K5090-08X500

Turquoise Tint

8

1/2

12.5

0.688

17.5

250 psi

200 psi

500 ft

Reel

57 lb

Request Quote

K5094-04X100

Red

4

1/4

6.5

0.395

10.0

250 psi

200 psi

100 ft

Coil/ Box

4 lb

Request Quote

K5094-04X500

Red

4

1/4

6.5

0.395

10.0

250 psi

200 psi

500 ft

Reel

27 lb

Request Quote

K5094-06X100

Red

6

3/8

9.5

0.560

14.2

250 psi

200 psi

100 ft

Coil/ Box

8 lb

Request Quote

K5094-06X500

Red

6

3/8

9.5

0.560

14.2

250 psi

200 psi

500 ft

Reel

47 lb

Request Quote

K5094-08X100

Red

8

1/2

12.5

0.688

17.5

250 psi

200 psi

100 ft

Coil/ Box

10 lb

Request Quote

K5094-08X500

Red

8

1/2

12.5

0.688

17.5

250 psi

200 psi

500 ft

Reel

57 lb

Request Quote

K5096-04X100

Blue

4

1/4

6.5

0.395

10.0

250 psi

200 psi

100 ft

Coil/ Box

4 lb

Request Quote

K5096-04X500

Blue

4

1/4

6.5

0.395

10.0

250 psi

200 psi

500 ft

Reel

27 lb

Request Quote

K5096-06X100

Blue

6

3/8

9.5

0.560

14.2

250 psi

200 psi

100 ft

Coil/ Box

8 lb

Request Quote

K5096-06X500

Blue

6

3/8

9.5

0.560

14.2

250 psi

200 psi

500 ft

Reel

47 lb

Request Quote

K5096-08X100

Blue

8

1/2

12.5

0.688

17.5

250 psi

200 psi

100 ft

Coil/ Box

10 lb

Request Quote

K5096-08X500

Blue

8

1/2

12.5

0.688

17.5

250 psi

200 psi

500 ft

Reel

57 lb

Request Quote

Phthalate Free⁽¹⁵⁾, RoHS⁽¹⁶⁾
