Kuriyama

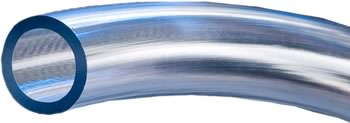

Kuri Tec 2600 Series 85 Shore “A” Ether-Based Clear Food Grade Polyurethane Tubing

Types:
Air and Multipurpose Hose

Vendor: Kuriyama

Application:

Clear polyurethane ether-based food grade tubing for transfer of air, fluids and abrasive slurries.

• Transfer of air and fluids under severe conditions
• Feed and return lines
• Abrasive slurry transfer
• Granular transfer lines
• Robotics control lines
• Insulating sleeves
• Lubrication lines
• Metering pumps

Features:

• Abrasion and cut resistance
• Good flex fatigue and resilience characteristics
• Excellent resistance to ozone, solvents and fuel
• Good resistance to hydrolysis and algae
• Slight blue tint allows see-through convenience
• Blue tint 2600 material conforms to FDA CFR 21-177-2600
• Complies with RMA’s Class A designation for high oil resistance
• Silicone-free
• One-piece lengths
• Phthalate Free

Note: Not recommended for transfer of brake fluids

Tube:

85 Shore “A” Durometer ether-based polyurethane tubing in transparent blue tint. Blue tint 2600 material conforms to FDA⁽⁰⁷⁾ and NSF⁽⁰⁹⁾ requirements. Also in compliance with RoHS⁽¹⁶⁾ requirements.

Temperature:

-40 to 175 ºF
-40 to 80 ºC

Packaging:

Coils per Box

Lengths:

100 ft.

Category:

Kuri Tec®

Colors:

Transparent blue tint

Series No.	Size Code	Nominal						Max.* Working Pressure (PSI)		Approx. Weight (per Pkg.)	Request Quote
		I.D.		O.D.		Wall
										lbs
		in.	mm	in.	mm	in.	mm	70°F	122°F
2600	0204	1/8	3.2	1/4	6.4	1/16	1.6	100	75	2	Request Quote
2600	0305	3/16	4.8	5/16	7.9	1/16	1.6	75	50	3	Request Quote
2600	0406	1/4	6.4	3/8	9.5	1/16	1.6	60	45	3.5	Request Quote
2600	0507	5/16	7.9	7/16	11.1	1/16	1.6	50	35	4	Request Quote
2600	0608	3/8	9.5	1/2	12.7	1/16	1.6	45	30	5	Request Quote
2600	0812	1/2	12.7	3/4	19.1	1/8	3.2	60	45	13	Request Quote

FDA⁽⁰⁷⁾, NSF⁽⁰⁹⁾, Phthalate Free⁽¹⁵⁾, RoHS⁽¹⁶⁾
