Kuriyama

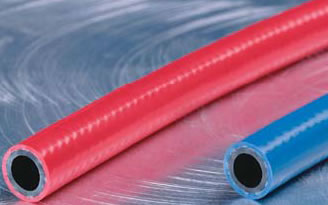

Series K1154 / K1156 / General purpose PVC hose

Types:
Air and Multipurpose Hose

Vendor: Kuriyama

Application:

A general purpose PVC air and water hose for in plant and outdoor applications in temperate climate conditions.

• Transfer of air, water and mild water soluble chemicals.
• Ideal for in-plant applications that require an economical general purpose hose.
• Excellent air supply line for pneumatic tools and paint spray systems.

Features:

• Economical, flexible and lightweight.
• Excellent abrasion resistance.
• U. V. and weather resistant.
• Non-marking pin-pricked cover.
• Silicone-free materials.
• Complies with RMA’s Class B designation for medium/high oil resistance.
• One piece lengths.
• Phthalate Free!

Tube:

Black PVC compound

Reinforcement:

High tensile strength yarn

Cover:

PVC compound, available in two colors: K1154 – red & K1156– blue

Temperature:

14 to 150 ºF
-10 to 65 ºC

Packaging:

Coils

Category:

Kuri Tec®

Colors:

K1154 - Red br K1156 - Blue

Item #	Standard Stock Color	Size Code	Nominal ID	Nominal OD	†Maximum Working Pressure at 70 ºF (20 ºC)	†Maximum Working Pressure at 122 ºF (50 ºC)	Standard Length Coils/Reels	Approx. Wt. Per Pkg.	Request a Quote
K1154-04X100	K1154	4	1/4 in	0.500 in	300 psi	150 psi	100 ft	8 lb	Request Quote
K1154-04X500	K1154	4	1/4 in	0.500 in	300 psi	150 psi	500 ft	44 lb	Request Quote
K1154-05X100	K1154	5	5/16 in	0.625 in	300 psi	150 psi	100 ft	13 lb	Request Quote
K1154-05X500	K1154	5	5/16 in	0.625 in	300 psi	150 psi	500 ft	68 lb	Request Quote
K1154-06X100	K1154	6	3/8 in	0.625 in	300 psi	150 psi	100 ft	11 lb	Request Quote
K1154-06X500	K1154	6	3/8 in	0.625 in	300 psi	150 psi	500 ft	56 lb	Request Quote
K1154-08X100	K1154	8	1/2 in	0.750 in	300 psi	150 psi	100 ft	14.00 lb	Request Quote
K1154-08X500	K1154	8	1/2 in	0.750 in	300 psi	150 psi	500 ft	70 lb	Request Quote
K1154-10X100	K1154	10	5/8 in	0.895 in	200 psi	100 psi	100 ft	18.00 lb	Request Quote
K1154-10X300	K1154	10	5/8 in	0.895 in	200 psi	100 psi	300 ft	60.0 lb	Request Quote
K1154-12X100	K1154	12	3/4 in	26.2 mm	200 psi	75 psi	100 ft	22.00 lb	Request Quote
K1154-12X300	K1154	12	3/4 in	26.2 mm	200 psi	75 psi	300 ft	72.0 lb	Request Quote
K1154-16X100	K1154	16	1 in	1.313 in	150 psi	75 psi	100 ft	31 lb	Request Quote
K1154-16X300	K1154	16	1 in	1.313 in	150 psi	75 psi	300 ft	105 lb	Request Quote
K1173-04X500	Black	4	1/4 in	0.475 in	300 psi	150 psi	500 ft	36.0 lb	Request Quote
K1173-06X500	Black	6	3/8 in	0.600 in	300 psi	150 psi	500 ft	48.0 lb	Request Quote
K1173-08X500	Black	8	1/2 in	0.750 in	300 psi	150 psi	300 ft	42 lb	Request Quote

Phthalate Free(15)
