Kuriyama
Series HT1100 Flexible Floppy Guard Interlocked Metal Hose

Application:

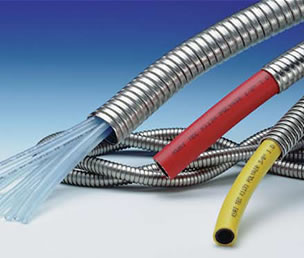

HT1100 Series Flexible "Floppy Guard" Interlocked Metal Hose.
For interlocked metal hose applications requiring a more flexible hose, HT1100's unique floppy-type construction allows maximum flexibility.

Construction:

A single metal strip is loosely interlock-wound to create an extremely flexible interlocked metal hose.
Available in Galvanized steel and Series 300 Stainless steel.

Features:

Extremely flexible and light weight.
Wide range of operating temperatures.
Available in mill run and special cut lengths.

Applications:

Shielding for wiring where flexibility is important.
Protective armor/shielding for hoses
Protective armor for plastic and rubber hoses.
Beverage dispenser hose armor.
Bend restrictor
BOP (Blow Out Protection) for hydraulic, cryogenic and other high pressure hoses
Shielding for wiring

Temperature:

Galvanized steel: Up to 750ºF
Series 300 Stainless steel: Up to 1500ºF

Packaging:

Coils

Lengths:

25 ft

Category:

HOSE TEC®

Hose Size ID	Min. Inside Bend Radius	Thickness	Weight	Request a Quote	Request a Quote
in	in	in	lbs/ft	Galvanized	Stainless Steel
3/16	0.75	0.011	0.08	Request Quote	Request Quote
1/4	1	0.011	0.1	Request Quote	Request Quote
5/16	1.25	0.011	0.12	Request Quote	Request Quote
3/8	1.5	0.011	0.14	Request Quote	Request Quote
1/2	2.25	0.011	0.16	Request Quote	Request Quote
5/8	2.75	0.011	0.18	Request Quote	Request Quote
3/4	3	0.011	0.2	Request Quote	Request Quote
7/8	3.5	0.011	0.23	Request Quote	Request Quote
1	3.75	0.011	0.28	Request Quote	Request Quote
1 1/8	4.5	0.011	0.32	Request Quote	Request Quote
1 1/4	5	0.011	0.36	Request Quote	Request Quote
1 3/8	5.5	0.011	0.42	Request Quote	Request Quote
1 1/2	6	0.011	0.48	Request Quote	Request Quote
1 5/8	6.5	0.011	0.52	Request Quote	Request Quote
1 3/4	7	0.011	0.58	Request Quote	Request Quote
1 7/8	7.5	0.011	0.62	Request Quote	Request Quote
2	8	0.011	0.66	Request Quote	Request Quote
2 1/4	9.5	0.011	0.76	Request Quote	Request Quote
