Kuriyama

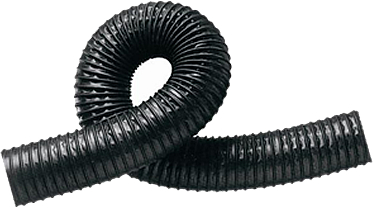

Series HTNP2 Neo-Duct Hose
Types:
Ducting
Vendor: Kuriyama
Application:
Neoprene Coated, Two-Ply Polyester Ducting Hose- Ducting, Ventilation & Fume Removal
- Dust Control
- High Temperature Air Handling
- Material Handling - Light Duty
FEATURES & Advantages
- Neoprene Coated Polyester Material - Heat and flame resistant tube well suited for air handling and fume control. More durable than double-ply cotton hoses, exhibiting good crush resistance and tensile strength.
- Steel Wire Helix - Highly durable steel wire provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation. (CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.)
- UL Information - The Neoprene coated Polyester material has been tested and conforms to UL94V-0.
- “Cold-Flex” Material - Hose remains flexible in sub-zero temperatures.
Compliance Footnotes
RoHS - The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
UL94V-0 - The materials have been tested and conform to UL94 flame classification V-0.
UL94V-0 - The materials have been tested and conform to UL94 flame classification V-0.
Construction
Neoprene Coated, Two-Ply Polyester Hose with Steel Wire HelixTemperature:
-65 to +250 ºF
-54 to +127 ºC *Actual service temperature range is application dependent
Packaging:
Cartons
Lengths:
25' lengths
Category:
FLEXAIR™, Neo-Duct®
Colors:
Black
Options:
50 Ft. lengths are available on special request.
| Series Number. | Neo-Duct Double Ply, Wire-Reinforced Flexible Fabric Ducting Hose | ||||||
| Nominal I.D. | Min. Bending Radius | Max. W.P. (PSI) | Hose Weight (lbs/ft) | Request
Quote Black |
|||
| Black | |||||||
| In. | mm | in. | mm | ||||
| HTNP2-150X25 | 1-1/2 | 38.1 | 2.6 | 66.0 | 32 | .16 | Request Quote |
| HTNP2-200X25 | 2 | 50.8 | 3.5 | 88.9 | 30 | .22 | Request Quote |
| HTNP2-250X25 | 2-1/2 | 63.5 | 4.0 | 101.6 | 28 | .28 | Request Quote |
| HTNP2-300X25 | 3 | 76.2 | 5.0 | 127.0 | 25 | .33 | Request Quote |
| HTNP2-350X25 | 3-1/2 | 88.9 | 5.7 | 144.8 | 24 | .42 | Request Quote |
| HTNP2-400X25 | 4 | 101.6 | 6.5 | 165.1 | 23 | .48 | Request Quote |
| HTNP2-500X25 | 5 | 127.0 | 7.5 | 190.5 | 22 | .61 | Request Quote |
| HTNP2-600X25 | 6 | 152.4 | 9.0 | 228.6 | 21 | .70 | Request Quote |
| HTNP2-700X25 | 7 | 177.8 | 9.5 | 241.3 | 20 | .92 | Request Quote |
| HTNP2-800X25 | 8 | 203.2 | 10.0 | 254.0 | 19 | 1.04 | Request Quote |
| HTNP2-1000X25 | 10 | 254.0 | 11.0 | 279.4 | 18 | 1.36 | Request Quote |
| HTNP2-1200X25 | 12 | 304.8 | 13.5 | 342.9 | 17 | 1.85 | Request Quote |
| HTNP2-1400X25 | 14 | 355.6 | 15.5 | 393.7 | 16 | 2.10 | Request Quote |
| HTNP2-1600X25 | 16 | 406.4 | 18.5 | 469.9 | 15 | 2.40 | Request Quote |
| HTNP2-1800X25 | 18 | 457.2 | 22.0 | 558.8 | 6 | 2.70 | Request Quote |
| HTNP2-2000X25 | 20 | 508.0 | 24.0 | 609.6 | 4 | 3.00 | Request Quote |
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
RoHS(06) , UL94V-0(07)
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
