Kuriyama

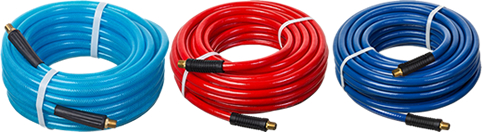

Kuri Tec Pneu-Thane HS5090, HS5094, HS5096 Series Air Tool Hose Assemblies

Types:
Air and Multipurpose Hose

Vendor: Kuriyama

Application:

Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose Assemblies (with Rubber Bend Restrictors)

An extremely lightweight, tough, flexible pneumatic air tool hose that is suitable for a wide range of industrial and construction applications.

For use with pneumatic air tools such as roofing nailers, sanders, chippers, impact wrenches, screwdrivers and staplers.
In-plant assembly line air service.
Automotive repair and body shops.
Construction sites.
Marine applications.
Air service for spray painting equipment.

Features:

Very lightweight and flexible . . . helps to cut down on work-related injuries.
Good flex fatigue and resilience characteristics.
Excellent resistance to oils and solvents.
High oil resistance, complies with ARPM’s Class A Designation.
Superior cut-resistance.
High abrasion-resistance . . . provides extra long life compared with conventional PVC or rubber air hoses.
Good resistance to hydrolysis and algae in warm water applications.
Silicone-free core and cover.
Non-conductive compounds.
Non-marking cover.
One-piece lengths.
Individually shrink-wrapped assemblies are available,contact JGB
RoHS⁽¹⁶⁾ compliant.
Phthalate Free!

Tube:

Clear ether-based polyurethane

Reinforcement:

High tensile strength yarn.

Cover:

Ether-based polyurethane

Temperature:

-40°F (-40°C) to +185°F (+85°C)

Couplings:

1/4" ID – 1/4" X 1/4"M NPT
3/8" ID – 3/8" X 1/4"M NPT.

Category:

Kuri Tec

Colors:

Black

Item #	Standard Stock Colors	Size Code	Nominal ID		Nominal OD		†Maximum Working Pressure at 122ºF (50ºC)	†Maximum Working Pressure at 70ºF (20ºC)	Assembled Lengths	Approx. Wt. Per Pkg.	Request a Quote
HS5090-04X25	Aqua Tint	4	1/4 in	6.5 mm	0.395 in	10.0 mm	200 psi	250 psi	25 ft	1.0 lb	Request Quote
HS5090-04X50	Aqua Tint	4	1/4 in	6.5 mm	0.395 in	10.0 mm	200 psi	250 psi	50 ft	2.0 lb	Request Quote
HS5090-04X100	Aqua Tint	4	1/4 in	6.5 mm	0.395 in	10.0 mm	200 psi	250 psi	100 ft	4.0 lb	Request Quote
HS5090-06X25	Aqua Tint	6	3/8 in	9.5 mm	0.560 in	14.2 mm	200 psi	250 psi	25 ft	1.5 lb	Request Quote
HS5090-06X50	Aqua Tint	6	3/8 in	9.5 mm	0.560 in	14.2 mm	200 psi	250 psi	50 ft	3.0 lb	Request Quote
HS5090-06X100	Aqua Tint	6	3/8 in	9.5 mm	0.560 in	14.2 mm	200 psi	250 psi	100 ft	6.0 lb	Request Quote
HS5094-04X25	Red	4	1/4 in	6.50 mm	0.395 in	10.0 mm	250 psi	200 psi	25 ft	1 lb	Request Quote
HS5094-04X50	Red	4	1/4 in	6.50 mm	0.395 in	10.0 mm	250 psi	200 psi	50 ft	2 lb	Request Quote
HS5094-04X100	Red	4	1/4 in	6.50 mm	0.395 in	10.0 mm	250 psi	200 psi	100 ft	4 lb	Request Quote
HS5094-06X25	Red	6	3/8 in	9.50 mm	0.560 in	14.2 mm	250 psi	200 psi	25 ft	1.5 lb	Request Quote
HS5094-06X50	Red	6	3/8 in	9.50 mm	0.560 in	14.2 mm	250 psi	200 psi	50 ft	3.0 lb	Request Quote
HS5094-06X100	Red	6	3/8 in	9.50 mm	0.560 in	14.2 mm	250 psi	200 psi	100 ft	6 lb	Request Quote
HS5096-04X25	Blue	4	1/4 in	6.50 mm	0.395 in	10.0 mm	250 psi	200 psi	25 ft	1.0 lb	Request Quote
HS5096-04X50	Blue	4	1/4 in	6.50 mm	0.395 in	10.0 mm	250 psi	200 psi	50 ft	2.0 lb	Request Quote
HS5096-04X100	Blue	4	1/4 in	6.50 mm	0.395 in	10.0 mm	250 psi	200 psi	100 ft	4.0 lb	Request Quote
HS5096-06X25	Blue	6	3/8 in	9.50 mm	0.560 in	14.2 mm	250 psi	200 psi	25 ft	1.5 lb	Request Quote
HS5096-06X50	Blue	6	3/8 in	9.50 mm	0.560 in	14.2 mm	250 psi	200 psi	50 ft	3.0 lb	Request Quote
HS5096-06X100	Blue	6	3/8 in	9.50 mm	0.560 in	14.2 mm	250 psi	200 psi	100 ft	6.0 lb	Request Quote
