Kuriyama

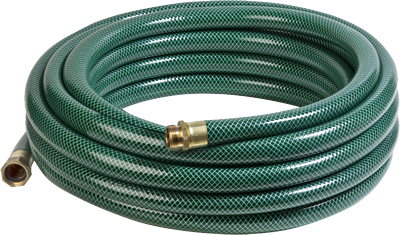

Kuri Tec HS1317 Series Heavy Duty Reinforced Green PVC Water Hose Assemblies

Types:
Water Hose     Sub Type: Water Washdown Hose

Vendor: Kuriyama

Application:

An all-purpose heavy duty PVC hose that's ideal for golf courses, parks and construction projects.

• Golf course water lines
• Heavy duty commercial and construction use
• Municipal maintenance and park departments
• Irrigation supply lines
• Heavy duty washdown

Features:

• Higher working and burst pressures
• Abrasion-resistant cover
• Good resistance to weather aging
• Silicone-free
• One-piece lengths
• Phthalate Free!
• Individually shrink-wrapped assemblies are available - contact JGB

Tube:

Smooth black PVC compound

Reinforcement:

High tensile strength yarn

Cover:

Smooth transparent green PVC compound

Temperature:

+25°F (-4°C) to 150°F (+65°C)

Packaging:

Individually shrink-wrapped assemblies

Couplings:

3/4” Hose assemblies are furnished with heavy-duty Brass GHT, 3/4” M x F fittings.
1” hose assemblies are furnished with 1” NPS pipe thread fittings.

Category:

Kuri Tec®

Colors:

Green

Item #	Size Code	Nominal ID		Nominal OD		Maximum Working Pressure† at 122ºF (50ºC)	Maximum Working Pressure† at 70ºF (20ºC)	Assembled Lengths	Approx. Wt. per Pkg.	Request a Quote
HS1317-12X50	12	3/4 in	19.1 mm	1.025 in	26.0 mm	50 psi	125 psi	50 ft	11.00 lb	Request Quote
HS1317-12X100	12	3/4 in	19.1 mm	1.025 in	26.0 mm	50 psi	125 psi	100 ft	22.00 lb	Request Quote
HS1317-16X50	16	1 in	25.4 mm	1.297 in	32.9 mm	50 psi	125 psi	50 ft	15.00 lb	Request Quote
HS1317-16X100	16	1 in	25.4 mm	1.297 in	32.9 mm	50 psi	125 psi	100 ft	30.00 lb	Request Quote

Phthalate Free⁽¹⁵⁾
