Kuriyama

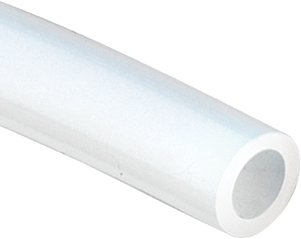

Kuri Tec 620P Series Polytetrafluorethylene (PTFE) Tubing

Types:
Tubing

Vendor: Kuriyama

Application:

• Aerospace and aviation applications
• Chemical transfer
• Industrial and mechanical applications
• Medical applications

FEATURES & Advantages:

• Superior Chemical Resistance – Chemical resistant PTFE compatible with an extremely wide range of industrial chemicals and solvents.
• Handles Extreme Temperatures – Service temperature range from -454°F to +500°F. Widest temperature range of any Kuri Tec product!
• Food Grade Materials – Tubing complies with applicable FDA and USP Class VI requirements.
• Chemically Inert – Will not react with most substances.
• Flame Retardant – Manufactured to meet UL94-V-O rating of the Standard for Safety of Flammability of Plastic Material in Devices and Appliance Testing.
• Meets ASTM-D3295 – Physical properties compliant with ASTM requirements for PTFE tubing.
• Phthalate Free

Tube:

PTFE – natural color. Formulated with ingredients in compliance with applicable FDA(03) requirements. Meets USP Class VI(19) and RoHS(16) criteria.

Temperature:

-454°F (-270°C) to +500°F (+260°C)† † Actual service temperature range is application dependent. Working pressure decreases as temperature increases.

Lengths:

100 ft.

Category:

Kuri Tec

Series	Size Code	Nominal OD		Nominal ID		Nominal Wall		Working Pressure (PSI) at 70°F (20°C)	Approx. Wt. per Pkg.	Request a Quote
		(in)	(mm)	(in)	(mm)	(in)	(mm)		(lbs.)
620P	463	1/4	6.4	0.125	3.2	0.063	1.6	372	2.3	Request Quote
620P	431	1/4	6.4	0.188	4.8	0.031	0.8	174	1.8	Request Quote
620P	663	3/8	9.5	0.25	6.4	0.063	1.6	240	5.8	Request Quote
620P	863	1/2	12.7	0.375	9.5	0.063	1.6	150	6.5	Request Quote

FDA⁽⁰³⁾, UL⁽¹⁷⁾, USP⁽¹⁹⁾, Phthalate Free⁽¹⁵⁾, RoHS⁽¹⁶⁾
