Kuriyama

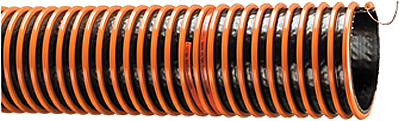

Tigerdrop NDH - Drop Hose - NDH Series

Types:
Petroleum Hose     Sub Type: Petroleum Petro Transfer Hose

Vendor: Kuriyama

Application:

• Tank truck gravity drop fuel transfer

Features & Advantages:

• Specialty Rubber Compounds – Designed to handle gasoline, diesel, ethanol** and biodiesel.**
• Durable Construction – Designed with high tensile strength polyester yarn fabric reinforcement.
• Easy to Handle – Lighter weight and greater flexibility than conventional rubber drop hoses.
• Grounding Wire – Durable multi-strand copper wire dissipates static electricity. Physically extract wire from the rigid helix and bond to the metal coupling (or by other means) to ground.
• Static Dissipating Tube – Specially formulated to help prevent the build-up of static electricity for added safety.
• Easy Slide Helix – Rigid clockwise helix design protects hose tube from cover wear; allows hose to slide easily over rough surfaces.
• Phthalate Free

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.

Vacuum Rating at 68ºF

Full

Vacuum Rating at 104ºF

27 inHg

Tube:

Specially blended nitrile (NBR) rubber tube

Reinforcement:

Polyester fabric reinforcement, rigid PVC helix and embedded grounding wire.

Temperature:

-10ºF (-23.3ºC) to +150ºF (+65.5ºC)
*Actual service temperature range is application dependent.

Series Number	ID		OD^		Working Pressure at 68ºF	Working Pressure at 104ºF	Min. Bending Radius at 68°F	Standard Length	Weight	Request a Quote
NDH202X100	2.02 in	51.3 mm	2.60 in	66.0 mm	75 psi	40 psi	5 in	100 ft	0.80 lbs/ft	Request Quote
NDH202X20	2.02 in	51.3 mm	2.60 in	66.0 mm	75 psi	40 psi	5 in	20 ft	0.80 lbs/ft	Request Quote
NDH303X100	3.03 in	77.0 mm	3.69 in	93.7 mm	70 psi	35 psi	6 in	100 ft	1.24 lbs/ft	Request Quote
NDH303X20	3.03 in	77.0 mm	3.69 in	93.7 mm	70 psi	35 psi	6 in	20 ft	1.24 lbs/ft	Request Quote
NDH404X100	4.04 in	102.6 mm	4.78 in	121.4 mm	65 psi	30 psi	8 in	100 ft	2.00 lbs/ft	Request Quote
NDH404X57	4.04 in	102.6 mm	4.78 in	121.4 mm	65 psi	30 psi	8 in	57 ft	2.00 lbs/ft	Request Quote
NDH404X20	4.04 in	102.6 mm	4.78 in	121.4 mm	65 psi	30 psi	8 in	20 ft	2.00 lbs/ft	Request Quote
