Kuriyama

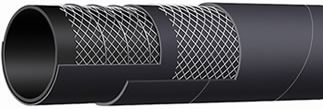

T601AA-150 PSI Oil Rigger/Oil Field-Frac Tank Hose

Types:
Oil Hose (Suction and Discharge)
Suction & Discharge     Sub Type: Oil Hose Suction & Discharge

Vendor: Kuriyama

Application:

Oil field vacuum tank service, for handling crude oil, frac solutions and slurries.
Note: For applications up to 35% aromatics.
Not for use with refined petroleum products.

Working Pressure:

Constant Pressure – 10 Bar (150 PSI)

Tube:

Black Nitrile –PVC blend, limited oil resistance, for oil field use.

Reinforcement:

High tensile textile cords; highly flexible steel helix wire.

Cover:

Black, SBR, abrasion, ozone, limited oil resistance.

Temperature:

-22°F (-30°C) to 176°F (+80°C)

Packaging:

Coils

Branding:

ALFAGOMMA – ITALY T601 10 BAR (150 PSI) OIL FIELD-FRACK TANK HOSE (in blue letters)

Couplings:

Quick-Acting coupling or combination nipples attached with bands.

Colors:

Black

Series	ID	OD	Max Rec. WP	Vacuum HG	Min. Bending Radius at 68°F	Weight	Request a Quote
T601AA200X100	2 in-51 mm	2.40 in-61 mm	150 psi	30 inHg	10 in	0.93 lbs/ft	Request Quote
T601AA300X100	3 in-76 mm	3.46 in-88 mm	150 psi	27 inHg	15 in	1.73 lbs/ft	Request Quote
T601AA400X100	4 in-102 mm	4.57 in-116 mm	150 psi	27 inHg	20 in	2.40 lbs/ft	Request Quote
T601AA600X20	6 in-152 mm	6.61 in-168 mm	150 psi	24 inHg	30 in	4.59 lbs/ft	Request Quote
T601AA600X100	6 in-152 mm	6.61 in-168 mm	150 psi	24 inHg	30 in	4.59 lbs/ft	Request Quote
