Kuriyama

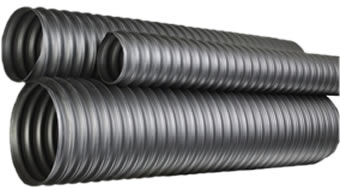

Series TMOD Thermo-Duct Hose
Types:
Ducting
Vendor: Kuriyama
Application:
Thermoplastic Rubber Ducting HoseFlexible and Compressible - Ideal for demanding and difficult applications.
MADE IN THE USA
- Chemical vapor exhausting†
- Ducting, ventilation & fume removal
- Dust control
- High temperature air handling
Features
- Thermoplastic Rubber (TPR) Material – Combines the chemical resistant properties of PVC with the flexibility of rubber to handle a wide variety of ducting or light material handling applications, especially ones when high cycle strength is required.
- Chemical Resistant – Excellent resistance to a wide variety of industrial chemicals.†
- Steel Wire Helix – Highly durable steel wire provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation.
- “Cold-Flex” Material – Hose remains flexible in sub-zero temperatures.
Tube:
Black thermoplastic rubber (TPR) elastomer
Reinforcement:
Steel wire helix
Temperature:
-60˚F (-51˚C) to +275˚F (+135˚C); up to 300˚F (+149˚C) for intermittent service.
Actual service temperature range is application dependent.
Lengths:
25 ft.
Colors:
Black
Options:
50 Ft. lengths are available on special request. Contact JGB customer service for pricing and lead time.
| Part Number | I.D. | Minimum Bend Radius |
Max. Working Pressure |
Vacuum Rating (in./Hg) |
Approx. Hose Weight (lbs./ft.) |
Request Quote |
| TMOD200X25 | 2" | 1" | 17 | 24 | 0.22 | Request Quote |
| TMOD250X25 | 2-1/2" | 1-1/4" | 15 | 24 | 0.40 | Request Quote |
| TMOD300X25 | 3" | 1-1/2" | 14 | 24 | 0.55 | Request Quote |
| TMOD400X25 | 4" | 2" | 11 | 24 | 0.75 | Request Quote |
| TMOD500X25 | 5" | 2-1/2" | 10 | 15 | 0.85 | Request Quote |
| TMOD600X25 | 6" | 3" | 9 | 9 | 0.94 | Request Quote |
| TMOD800X25 | 8" | 4" | 8 | 8 | 1.62 | Request Quote |
| TMOD1000X25 | 10" | 5" | 7 | 6 | 1.86 | Request Quote |
| TMOD1200X25 | 12" | 6" | 6 | 4 | 2.05 | Request Quote |
| TMOD1400X25 | 14" | 7" | 5 | 3 | 2.35 | Request Quote |
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
† CAUTION: Before using any hose, the user is responsible for determining it’s suitability for the intended application. Therefore, the user assumes all risk and responsibility for determining the suitability of any hose for handling any chemical or chemicals.
CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
† CAUTION: Before using any hose, the user is responsible for determining it’s suitability for the intended application. Therefore, the user assumes all risk and responsibility for determining the suitability of any hose for handling any chemical or chemicals.
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
