Kuriyama

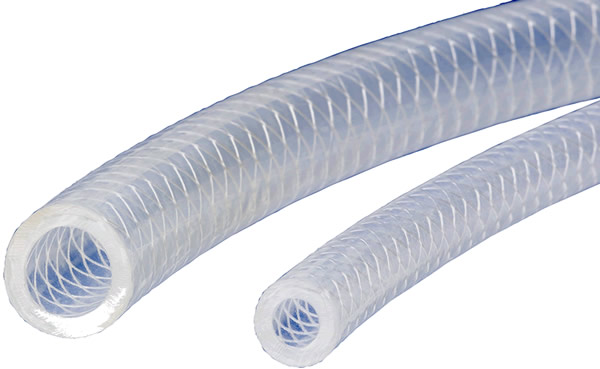

Kuri Tec Series A1730 Flexible FDA Polyethylene Hose

Application:

A flexible food grade hose for those applications in which a PVC hose may not be suitable.

Applications involving radiation or other contaminants that require disposal of the hose after use.
Food transfer.

A flexible food grade hose for those applications in which a PVC hose may not be suitable.

FDA - Material complies with 21 CFR 177.1350.
RoHS - The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Features

Flexible non-chlorinated non-PVC hose.
Can be incinerated without harmful emissions.
Light weight.

Tube:

82 Shore "A" polyethylene in compliance with FDA⁽⁰⁴⁾ and RoHS⁽¹⁶⁾ requirements.

Reinforcement:

High tensile strength yarn

Cover:

68 Shore “A” flexible polyethylene cover in compliance with FDA⁽⁰⁴⁾ and RoHS⁽¹⁶⁾ requirements.

Temperature:

-60 to 120 ºF
-51 to 49 ºC

Category:

Kuri Tec®

Item #	Nominal I.D.		Nominal O.D.		Max. Working Pressure at 70ºF (20ºC)	Max. Working Pressure at 122ºF (50ºC)	Std. Length	Approx. Wt. per Pkg.	Request Quote
A1730-04X500	1/4 in	6.5 mm	0.460 in	11.7 mm	150 PSI	75 PSI	500 ft	22.5 lbs	Request Quote
A1730-06X300	3/8 in	9.5 mm	0.593 in	15.1 mm	150 PSI	75 PSI	300 ft	19.8 lbs	Request Quote
A1730-08X300	1/2 in	12.7 mm	0.740 in	18.8 mm	150 PSI	75 PSI	300 ft	17.3 lbs	Request Quote
A1730-04X100	1/4 in	6.5 mm	0.460 in	11.7 mm	150 PSI	75 PSI	100 ft	4.5 lbs	Request Quote
A1730-06X100	3/8 in	9.5 mm	0.593 in	15.1 mm	150 PSI	75 PSI	100 ft	6.6 lbs	Request Quote
A1730-08X100	1/2 in	12.7 mm	0.740 in	18.8 mm	150 PSI	75 PSI	100 ft	9.1 lbs	Request Quote

† NOTE: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
