Kuriyama

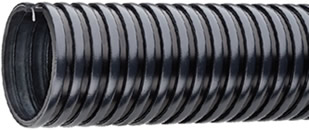

Tiger "HiTemp" THT Series - Wire Reinforced EPDM Wet / Dry Material Handling Hose
Types:
Material Handling Hose
Sub Type:
Material Handling Abrasives and Corrosives hose
Material Handling Bulk Transfer Hose
Suction & Discharge
Sub Type:
Chemical Suction & Discharge Hose
Water Suction & Discharge Hose
Vendor: Kuriyama
Application:
- Agricultural liquid fertilizer
- Fly ash collection
- Hydroexcavation
- Industrial vacuum equipment
- Material chutes
- Material handling – heavy duty abrasive
- Milling machine scrap recovery
- Rock, gravel, sand and crushed concrete vacuuming
- Sewer truck boom hose
- Slurry handling
Features and Advantages:
- Wire Reinforced Helix – Highly durable steel helical wire provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for additional static dissipation.
- Static Dissipative Tube - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
- “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures.
- Convoluted Cover Design – Provides increased hose flexibility.
Temperature:
-40°F (-40°C) to 220°F (+104°C)*
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
| Series | ID (in.) |
ID (mm) |
OD (in.) |
OD (mm) |
Working Pressure (psi) 68°F 104°F |
Vacuum Rating (in. Hg) 68°F 104°F |
Min. Bending Radius (in. 68°F) |
Standard Lengths (ft.) | Weight (lbs./ft.) | Request a Quote | |||
| THT300 | 3 | 76.2 | 3.59 | 91.2 | 40 | 33 | Full | 28 | 5.5 | 100 | 1.33 | Request Quote | |
| THT400 | 4 | 101.6 | 4.63 | 117.6 | 29 | 21 | Full | 26 | 5.5 | 100/20 | 1.90 | Request Quote | |
| THT500 | 5 | 127.0 | 5.78 | 146.8 | 25 | 19 | Full | 25 | 8.5 | 100/20 | 2.95 | Request Quote | |
| THT600 | 6 | 152.4 | 6.87 | 178.4 | 19 | 14 | 27 | 24 | 10.0 | 100/50/20 | 3.65 | Request Quote | |
| THT800 | 8 | 204.8 | 9.06 | 229.8 | 14 | 10 | 27 | 24 | 15.0 | 50/20 | 5.94 | Request Quote | |
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
*Actual service temperature range is application dependent.
CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
RoHS(11)
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
