Kuriyama

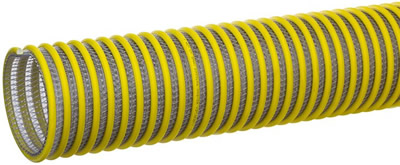

SOLARGUARD WST-SLR Series Heavy Duty PVC Fabric Reinforced Suction & Discharge Hose with High UV Resistance

Types:
Suction & Discharge
Sub Type:
Water Suction & Discharge Hose

Vendor: Kuriyama

Application:

Fish suction
Irrigation lines
Pumps, rental and construction dewatering
Pumps, trash
Suction and discharge
Water suction - heavy duty

Temperature:

-4°F (-20°C) to 150°F (+65°C)*

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Construction:

Double-ply PVC tube, polyester fabric reinforcement and rigid PVC helix

Features and Advantages:

Advanced UV Protection! – The hose material is specially formulated to resist the cracking that can result from exposure to damaging UV light. Our tests show the Solarguard material retained 97% of its original tensile strength after prolonged UV exposure, compared to only 55% tensile strength retention for similar PVC hoses.†
Advanced Transparent UV Protected Construction – "See-the-flow". Allows for visual confirmation of material flow.
Fabric Reinforcement – High tensile strength polyester yarn jacket to handle both suction and higher pressure discharge applications.
Easy Slide "Safety Yellow" Helix – Highly visible yellow color helps to easily identify hose. Rigid helix design protects hose tube from cover wear and allows hose to slide easily over rough surfaces.
Phthalate Free

*Actual service temperature range is application dependent.

† This information is based on independent third party test reports which are, to the best of our knowledge, complete and accurate. However, no warranty is expressed or implied, as specific application parameters such as temperature, stress and strain, and chemical exposure vary widely.

Series	ID	OD	Working Pressure at 68ºF	Working Pressure at 104ºF	Vacuum Rating at 68°F	Vacuum Rating at 104ºF	Min. Bending Radius at 68ºF	Standard Length	Weight	Request a Quote
WST-SLR150X100	1 1/2 in	1.95 in	110 psi	70 psi	FULL	28 inHg	2.5 in	100 ft	0.42 lbs/ft	Request Quote
WST-SLR200X100	2 in	2.60 in	100 psi	65 psi	FULL	28 inHg	4 in	100 ft	0.74 lbs/ft	Request Quote
WST-SLR300X100	3 in	3.62 in	100 psi	50 psi	FULL	28 inHg	6 in	100 ft	1.13 lbs/ft	Request Quote
WST-SLR400X100	4 in	4.76 in	75 psi	37 psi	FULL	28 inHg	8 in	100 ft	1.74 lbs/ft	Request Quote
WST-SLR400X20	4 in	4.76 in	75 psi	37 psi	FULL	28 inHg	8 in	20 ft	1.74 lbs/ft	Request Quote
WST-SLR600X100	6 in	7.17 in	70 psi	35 psi	28 inHg	25 inHg	13 in	100 ft	3.88 lbs/ft	Request Quote
WST-SLR600X20	6 in	7.17 in	70 psi	35 psi	28 inHg	25 inHg	13 in	20 ft	3.88 lbs/ft	Request Quote
WST-SLR800X20	8 in	9.21 in	60 psi	30 psi	26 inHg	20 inHg	18 in	20 ft	5.57 lbs/ft	Request Quote
