Kuriyama

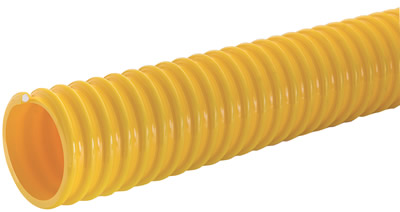

SOLARGUARD SLR Series Heavy Duty PVC Liquid Suction Hose with High UV Resistance

Types:
Suction & Discharge
    Sub Type:
    Chemical Suction & Discharge Hose
    Water Suction & Discharge Hose

Vendor: Kuriyama

Application:

Agricultural liquid fertilizers
Air seeder lines
Fish suction
Irrigation lines
Pumps, rental and construction dewatering
Pumps, trash
Water suction - heavy duty

Tube:

PVC tube with rigid PVC helix.

Temperature:

-4°F (-20°C) to 150°F (+65°C)*

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Category:

Tigerflex™ Thermoplastic Industrial Hoses

Construction:

PVC tube with rigid PVC helix

Features and Advantages:

Advanced UV Protection! - The hose material is specially formulated to resist the cracking that can result from exposure to damaging UV light. Our tests show the Solarguard material retained 97% of its original tensile strength after prolonged UV exposure, compared to only 55% tensile strength retention for similar PVC hoses.†
“Safety Yellow” Color - For high visibility on job site. Reduces risk of tripping or driving over hose.
Convoluted Outer Cover - Provides increased hose flexibility.
Phthalate Free

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.

*Actual service temperature range is application dependent.

† This information is based on independent third party test reports which are, to the best of our knowledge, complete and accurate. However, no warranty is expressed or implied, as specific application parameters such as temperature, stress and strain, and chemical exposure vary widely.

Series	ID	OD	Working Pressure at 68ºF	Working Pressure at 104ºF	Vacuum Rating at 68°F	Vacuum Rating at 104ºF	Min. Bending Radius at 68ºF	Standard Length	Weight	Request a Quote
SLR150X100	1 1/2 in	1.85 in	50 psi	30 psi	FULL	28 inHg	2 in	100 ft	0.34 lbs/ft	Request Quote
SLR200X100	2 in	2.40 in	50 psi	30 psi	FULL	28 inHg	3 in	100 ft	0.52 lbs/ft	Request Quote
SLR250X100	2 1/2 in	2.99 in	45 psi	25 psi	FULL	28 inHg	4 in	100 ft	0.77 lbs/ft	Request Quote
SLR300X100	3 in	3.64 in	45 psi	25 psi	FULL	28 inHg	6 in	100 ft	1.18 lbs/ft	Request Quote
SLR400X100	4 in	4.76 in	35 psi	18 psi	FULL	28 inHg	8 in	100 ft	1.92 lbs/ft	Request Quote
SLR600X100	6 in	7.00 in	30 psi	15 psi	28 inHg	25 inHg	14 in	100 ft	3.76 lbs/ft	Request Quote
SLR600X20	6 in	7.00 in	30 psi	15 psi	28 inHg	25 inHg	14 in	20 ft	3.76 lbs/ft	Request Quote
SLR800X40	8 in	9.18 in	30 psi	15 psi	28 inHg	25 inHg	24 in	40 ft	5.99 lbs/ft	Request Quote
