Gates

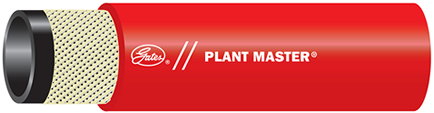

Plant Master® (150-200)

Types:
Air and Multipurpose Hose

Vendor: Gates

Application:

Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in–plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides.

Design Factor:

3:1

Tube:

Type P (EPDM). Black. (ARPM (Class C) Limited oil–resistance.)

Reinforcement:

Synthetic, high tensile textile cord.

Cover:

Type P (EPDM). All sizes through 1/2" are perforated. (ARPM (Class C) Limited oil–resistance.)

Temperature:

-40°F to +200°F (-40°C to +93°C) continuous service.

Couplings:

Contact JGB for proper hose fitting requirements.

Color	Hose I.D.		Hose O.D.		Max. W.P.	Vac.	MBR	Wt. Per ft	Length	Std. Pack	Item No.	Request a Quote
	(in)	(mm)	(in)	(mm)	(psi)	(In. Hg)	(in)	(Lbs.)	(ft)
Black	1/4	6.4	0.5	12.7	200	30	3	0.09	500	Reel	3204-1401	Request Quote
Black	1/4	6.4	0.5	12.7	200	30	3	0.09	500	Reel	3204-4402	Request Quote
Black	5/16	7.9	0.53	13.5	200	30	3	0.09	500	Reel	3204-0710	Request Quote
Black	3/8	9.5	0.66	16.8	200	30	3	0.14	500	Reel	3204-1407	Request Quote
Black	3/8	9.5	0.66	16.8	200	30	3	0.15	500	UPS	3204-1408	Request Quote
Black	3/8	9.5	0.66	16.8	200	30	3	0.14	500	Reel	3204-4407	Request Quote
Black	1/2	12.7	0.81	20.6	200	25	5	0.21	250	UPS	3204-1414	Request Quote
Black	1/2	12.7	0.81	20.6	200	25	5	0.2	500	Reel	3204-1413	Request Quote
Black	1/2	12.7	0.81	20.6	200	25	5	0.19	500	Reel	3204-4413	Request Quote
Black	5/8	15.9	0.97	24.6	200	20	6	0.26	500	Reel	3204-1419	Request Quote
Black	3/4	19.1	1.11	28.2	200	15	6	0.32	500	Reel	3204-1422	Request Quote
Black	3/4	19.1	1.11	28.2	200	15	6	0.23	500	Reel	3204-4422	Request Quote
Black	1	25.4	1.4	35.6	200	10	8	1.11	125	UPS	3204-1432	Request Quote
Black	1	25.4	1.4	35.6	150	10	8	0.48	400	Reel	3204-1428	Request Quote
Black	1	25.4	1.4	35.6	200	10	8	0.48	400	Reel	3204-1431	Request Quote
Red	1/4	6.4	0.5	12.7	200	30	3	0.08	50	Bulk	3204-1730	Request Quote
Red	1/4	6.4	0.5	12.7	200	30	3	0.09	500	Reel	3204-1301	Request Quote
Red	1/4	6.4	0.5	12.7	200	30	3	0.09	500	UPS	3204-1373	Request Quote
Red	1/4	6.4	0.5	12.7	200	30	3	0.11	500	Reel	3204-5301	Request Quote
Red	5/16	7.9	0.53	13.5	200	30	3	0.09	500	Reel	3204-1316	Request Quote
Red	3/8	9.5	0.66	16.8	200	30	3	0.14	400	UPS	3204-1375	Request Quote
Red	3/8	9.5	0.66	16.8	200	30	3	0.14	500	Reel	3204-1319	Request Quote
Red	3/8	9.5	0.66	16.8	200	30	3	0.14	500	Reel	3204-5319	Request Quote
Red	1/2	12.7	0.81	20.6	200	25	5	0.23	250	UPS	3204-1377	Request Quote
Red	1/2	12.7	0.81	20.6	200	25	5	0.2	500	Reel	3204-1328	Request Quote
Red	1/2	12.7	0.81	20.6	200	25	5	0.22	500	Reel	3204-5328	Request Quote
Red	5/8	15.9	0.97	24.6	200	20	6	0.26	250	UPS	3204-1379	Request Quote
Red	5/8	15.9	0.97	24.6	200	20	6	0.26	500	Reel	3204-1337	Request Quote
Red	5/8	15.9	0.97	24.6	200	20	6	0.29	500	Reel	3204-5337	Request Quote
Red	3/4	19.1	1.11	28.2	200	15	6	0.31	50	Bulk	3204-1636	Request Quote
Red	3/4	19.1	1.11	28.2	200	15	6	0.31	200	UPS	3204-1381	Request Quote
Red	3/4	19.1	1.11	28.2	200	15	6	0.31	500	Reel	3204-1346	Request Quote
Red	3/4	19.1	1.11	28.2	200	15	6	0.36	500	Reel	3204-5346	Request Quote
Red	1	25.4	1.39	35.3	150	10	8	0.48	400	Reel	3204-1358	Request Quote
Red	1	25.4	1.39	35.3	200	10	8	0.48	400	Reel	3204-1361	Request Quote
Red	1	25.4	1.4	35.6	200	10	8	0.45	125	UPS	3204-1383	Request Quote
