Gates

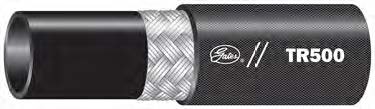

TR500 High-Temp/Air Brake/Engine Hose

Types:
Hydraulic Hose

Vendor: Gates

Application:

Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106–74, SAE J1402 for air brake hose (–4, –6, –8, –10). Not recommended for gasoline or diesel fuel applications.

Tube:

Black (Nitrile).

Reinforcement:

One braid of high-tensile steel wire

Cover:

Oil and mildew resistant, textile braid, impregnated with synthetic rubber.

Temperature:

-40°F to +250°F (-40°C to +121°C)

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Part No.	Description	Product No.	Standard Pack	Hose ID	Hose OD	WP	Min. Burst	MBR	Vacuum	Request a Quote
				In.	In.	psi	psi	In.
85745	4TR500 X50FT	4657-2600	1	1/4	0.51	500	2000	1.0	30	Request Quote
70881	4TR500XREEL	4657-2228	250	1/4	0.51	500	2000	1.0	30	Request Quote
85747	6TR500 X50FT	4657-2601	1	3/8	0.66	500	2000	1.8	30	Request Quote
70883	6TR500XREEL	4657-2520	350	3/8	0.66	500	2000	1.8	30	Request Quote
85748	8TR500 X50FT	4657-2602	1	1/2	0.80	500	2000	2.3	30	Request Quote
70884	8TR500XREEL	4657-2521	350	1/2	0.80	500	2000	2.3	30	Request Quote
85749	10TR500 X50FT	4657-2603	1	5/8	0.93	500	2000	2.8	30	Request Quote
70885	10TR500XREEL	4657-2229	300	5/8	0.93	500	2000	2.8	30	Request Quote
85750	12TR500 X50FT	4657-2604	1	3/4	1.04	500	2000	3.5	30	Request Quote
70886	12TR500XREEL	4657-2230	200	3/4	1.04	500	2000	3.5	30	Request Quote
85751	16TR500 X50FT	4657-2605	1	1	1.30	500	2000	4.5	30	Request Quote
70887	16TR500XREEL	4657-2231	150	1	1.30	500	2000	4.5	30	Request Quote
