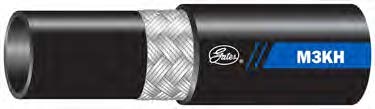

GLOBAL M3KH MEGA3000® HOSE - HIGH-TEMP - SAE 100R17

Types:
Hydraulic Hose

Vendor: Gates

Application:

Elevated temperature high–pressure hydraulic oil lines. Exceeds ISO 18752 Grade C, SAE 100R17 and ISO 11237 R17 requirements and performance requirements of EN 857 1SC. M3KH hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose.

Meets Flame Resistance Acceptance Designation "MSHA 2G" and ISO 11237 R17. Tested to Industry Leading 600,000 impulse cycles.

Tube:

Black, oil resistant, synthetic rubber (Nitrile)

Reinforcement:

Braided, high–tensile steel wire. –4, –5, –6 and –8 sizes are one braid; –10, –12 and –16 sizes are two braid.

Cover:

Black, oil, abrasion and weather resistant, synthetic rubber (Polychloroprene), with color coded layline. Also available with unique abrasion resistant MegaTuff® cover.

Temperature:

-40°F to +250°F (-40°C to +121°C)

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Part No.	Description	Product No.	Standard Pack	Hose ID	Hose OD	WP	Min. Burst	MBR	Request a Quote
				In.	In.	psi	psi	In.
70898	4M3KHXREEL	4657-2664	440	1/4	0.48	3250	13000	2	Request Quote
70789	5M3KHXREEL	4657-4055	330	5/16	0.6	3250	13000	2.2	Request Quote
70899	6M3KHXREEL	4657-2696	330	3/8	0.65	3250	13000	2.5	Request Quote
70953	8M3KHXREEL	4657-1360	220	1/2	0.8	3250	13000	3.5	Request Quote
70954	10M3KHXREEL	4657-1361	220	5/8	0.99	3250	13000	4	Request Quote
70955	12M3KHXREEL	4657-1362	220	3/4	1.15	3250	13000	4.8	Request Quote
70907	16M3KHXREEL	4657-1363	165	1	1.48	3250	13000	6	Request Quote
