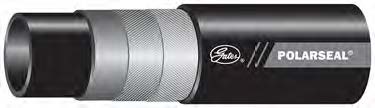

Gates
PolarSeal Hose

Types:
Hydraulic Hose

Vendor: Gates

Application:

Liquid and gaseous R134a and R12 refrigerants in automotive air conditioning and industrial systems; i.e., tractors construction trucks, mobile and stationary refrigeration units. Designed to minimize permeation of R134a refrigerant. Air conditioning refrigerant hose is manufactured in accordance with SAE J3062, while air conditioning hose assemblies must meet SAE J2064.

PolarSeal® (ACA) full dimension barrier hose. SAE J51, Type A2 Dimensions; SAE J51, Type D Performance; SAE J3062, Type C, Class II Performance.

Barrier

Nylon liner

Tube:

Black, synthetic rubber (Polychloroprene).

Reinforcement:

Two layers of spiral polyester.

Cover:

Black synthetic rubber (EPDM).

Temperature:

-22°F to +257°F (-30°C to +125°C).

Branding:

Gates® PolarSeal

Couplings:

PolarSeal® Couplings (ACA) (G45) Section P

Category:

Refrigerant

Part No.	Description	Product No.	Standard Pack	ID	OD	Working Pressure	Min. Burst Pressure	MBR	Vacuum	Request a Quote
85664	6AC134A X25FT	3353-0901	1	5/16	0.75	500	2000	2.0	24	Request Quote
70624	6AC134AXREEL	3353-0903	340	5/16	0.75	500	2000	2.0	24	Request Quote
85665	8AC134A X25FT	3353-0906	1	13/32	0.91	500	2000	3.0	24	Request Quote
70625	8AC134AXREEL	3353-0908	235	13/32	0.91	500	2000	3.0	24	Request Quote
85666	10AC134A X25FT	3353-0911	1	1/2	1.00	500	2000	4.0	24	Request Quote
70626	10AC134AXREEL	3353-0913	210	1/2	1.00	500	2000	4.0	24	Request Quote
85667	12AC134A X25FT	3353-0916	1	5/8	1.13	500	2000	5.0	24	Request Quote
70627	12AC134AXREEL	3353-0918	175	5/8	1.13	500	2000	5.0	24	Request Quote
