Gates

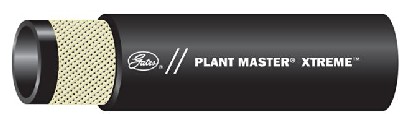

Plant Master® XTreme™ 300 Lock-On Braid

Types:
Air and Multipurpose Hose

Vendor: Gates

Application:

Petroleum–based hydraulic oils, water, glycol anti–freeze solutions, hot lubricating oils, and air.

CAUTION: Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels.

STANDARDS:

Black cover meets MSHA Flame–resistant.
Tube: ARPM (Class A) High oil–resistance.
Cover: ARPM (Class B) Medium oil–resistance. Flame–resistant.

Design Factor:

4:1

Tube:

Type C (Nitrile). Black.

Reinforcement:

Braided, high tensile synthetic textile cord.

Cover:

Type C2 (Modified Nitrile).

Temperature:

–40°F to +212°F (–40°C to +100°C) normal service. For air: +160°F (+71°C) only.

Couplings:

Contact JGB for proper fitting requirements.

Colors:

Black, blue, gray, green, red, yellow

Color	Hose I.D.		Hose O.D.		Max. W.P.		Vac.	MBR	Wt. Per ft	Length	Item No.	Request a Quote
	(in)	(mm)	(in)	(mm)	(psi)	(Bar)	(In. Hg)	(in)	(Lbs.)	(ft)
Black	1/4	6.4	0.47	11.9	300	20.7	27.9	3	0.09	300	3201-1100	Request Quote
Black	3/8	9.5	0.63	16	300	20.7	27.9	3	0.11	300	3201-1101	Request Quote
Black	1/2	12.7	0.77	19.6	300	20.7	27.9	5	0.15	300	3201-1102	Request Quote
Black	5/8	15.9	0.94	23.9	300	20.7	27.9	6	0.2	250	3201-1103	Request Quote
Black	3/4	19.1	1.06	26.9	300	20.7	15	7	0.24	225	3201-1104	Request Quote
Blue	1/4	6.4	0.47	11.9	300	20.7	27.9	3	0.09	300	3201-1105	Request Quote
Blue	3/8	9.5	0.63	16	300	20.7	27.9	3	0.11	300	3201-1106	Request Quote
Blue	1/2	12.7	0.77	19.6	300	20.7	27.9	5	0.15	300	3201-1107	Request Quote
Blue	5/8	15.9	0.94	23.9	300	20.7	27.9	6	0.2	250	3201-1108	Request Quote
Blue	3/4	19.1	1.06	26.9	300	20.7	15	7	0.24	225	3201-1109	Request Quote
Gray	1/4	6.4	0.47	11.9	300	20.7	27.9	3	0.09	300	3201-1125	Request Quote
Gray	3/8	9.5	0.63	16	300	20.7	27.9	3	0.11	300	3201-1126	Request Quote
Gray	1/2	12.7	0.77	19.6	300	20.7	27.9	5	0.15	300	3201-1127	Request Quote
Gray	5/8	15.9	0.94	23.9	300	20.7	27.9	6	0.2	250	3201-1128	Request Quote
Gray	3/4	19.1	1.06	26.9	300	20.7	15	7	0.24	225	3201-1129	Request Quote
Green	1/4	6.4	0.47	11.9	300	20.7	27.9	3	0.09	300	3201-1120	Request Quote
Green	3/8	9.5	0.63	16	300	20.7	27.9	3	0.11	300	3201-1121	Request Quote
Green	1/2	12.7	0.77	19.6	300	20.7	27.9	5	0.15	300	3201-1122	Request Quote
Green	5/8	15.9	0.94	23.9	300	20.7	27.9	6	0.2	250	3201-1123	Request Quote
Green	3/4	19.1	1.06	26.9	300	20.7	15	7	0.24	225	3201-1124	Request Quote
Red	1/4	6.4	0.47	11.9	300	20.7	27.9	3	0.09	300	3201-1110	Request Quote
Red	3/8	9.5	0.63	16	300	20.7	27.9	3	0.11	300	3201-1111	Request Quote
Red	1/2	12.7	0.77	19.6	300	20.7	27.9	5	0.15	300	3201-1112	Request Quote
Red	5/8	15.9	0.94	23.9	300	20.7	27.9	6	0.2	250	3201-1113	Request Quote
Red	3/4	19.1	1.06	26.9	300	20.7	15	7	0.24	225	3201-1114	Request Quote
Yellow	1/4	6.4	0.47	11.9	300	20.7	27.9	3	0.09	300	3201-1115	Request Quote
Yellow	3/8	9.5	0.63	16	300	20.7	27.9	3	0.11	300	3201-1116	Request Quote
Yellow	1/2	12.7	0.77	19.6	300	20.7	27.9	5	0.15	300	3201-1117	Request Quote
Yellow	5/8	15.9	0.94	23.9	300	20.7	27.9	6	0.2	250	3201-1118	Request Quote
Yellow	3/4	19.1	1.06	26.9	300	20.7	15	7	0.24	225	3201-1119	Request Quote
