Gates

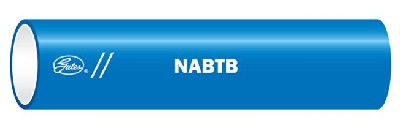

Nylon Air Brake Tubing - Blue

Types:
Hydraulic Hose

Vendor: Gates

Application:

Air brake for truck, tractor trailer, and other moving equipment. Also suitable for DEF vent line, air accessories and instrumentation, alcohol, and solvents. Not for use where heat or battery acid is present.

Tube:

Heat and light stabilized seamless extruded nylon 12 tube.

Cover:

Blue nylon 11 cover

Temperature:

-40°F to +200°F (-40°C to +93°C).

Branding:

Gates® NABTB

Couplings:

Gates DOT SureLok™ or Gates Compression Couplings

OD	Wall Nominal	Type*	Color	Work. Press. Max.	Burst Minimum	Bend Rad. Min.	Weight Ref.	Bulk Length	Item Number	Request a Quote
in.	inch	Type*	Color	psi	psi	in.	lbs/ft	feet	Item Number	Request a Quote
1/4	0.039	A	Blue	150	1204	1	0.01	5000	4327-1001	Request Quote
1/4	0.039	B	Blue	150	1204	1	0.01	1000	4327-0102	Request Quote
3/8	0.063	B	Blue	150	1407	1.25	0.03	1000	4327-1002	Request Quote
3/8	0.063	B	Blue	150	1407	1.25	0.03	500	4327-0128	Request Quote
1/2	0.064	B	Blue	150	957	2	0.04	500	4327-0133	Request Quote
5/8	0.093	B	Blue	150	899	2.5	0.07	50	4327-0071	Request Quote
3/4	0.091	B	Blue	150	798	3	0.09	50	4327-0072	Request Quote
