Continental ContiTech
TRIX Multifood Hose

TRIX Multifood Hose

Types:
Sanitary Food Grade


Vendor: Continental ContiTech

Application:

The versatile hose for the food industry

TRlX® MULTIFOOD is the universal hose for the food industry. It can be used in dairy, cheese production, margarine production, large-scale catering establishments, fish processing industry as well as in breweries, slaughter-houses, oil mills, skinning industry, large-scale butcher’s shops and jam production. It is suitable for conveying milk, whey and hot water up to +90°C (+194°F).

Tube:

White, homogeneous, smooth NBR-lining, absolutely neutral to taste and odour

Reinforcement:

Synthetic fibers

Cover:

Blue or white, smooth NBR-cover, resistant to ozone, weather, UV, oils, fats and abrasion

Temperature:

Temperature range from -4°F up to +194°F / –20°C up to +90°C
Can be steamed up to 6 bar / 87 psi (+164°C / +327°F) for sterilization max. 10 min - open system only

Branding:

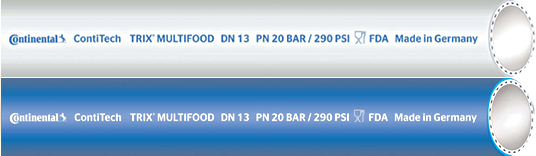

"Continental ContiTech TRIX® MULTIFOOD DN 13 PN 20 BAR / 290 PSI glass/fork symbol FDA Made in Germany" on white cover

Features:

  • Working pressure up to 20 bar / 290 psi
  • Meets the requirements of EG 1935/2004 and EG 2023/2006
  • Meets FDA (21 CFR 177.2600)
nominal-width inner-ø wall-thickness length WP min. burst min. bending radius weight Request Quote
in in in ft bar psi bar psi aprx. in aprx. lb/ft
1/2 0.51 0.20 131 20 290 60 870 3.74 0.29 Request Quote
5/8 0.63 0.20 131 20 290 60 870 4.53 0.34 Request Quote
3/4 0.75 0.24 131 20 290 60 870 5.91 0.47 Request Quote
1 0.98 0.28 131 20 290 60 870 7.87 0.71 Request Quote

Hose design ratio (burst pressure) 3:1.
