Texcel
TEX-OSD 250

Types:
Petroleum Hose     Sub Type: Petroleum Suction & Discharge Hose
Suction & Discharge     Sub Type: Petroleum Suction & Discharge

Vendor: Texcel

Application:

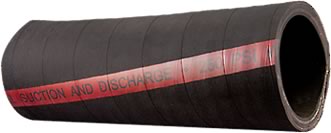

Oil Suction & Discharge Hose 250psi
Smooth bore dock hose with high strength construction and 250psi working pressure for the longest possible service life under severe conditions. Meets U.S.C.G. certification requirements when assembled per USCG 33CFR 154.500 specifications.

Safety Factor:

4:1

Working Pressure:

250 psi

Vacuum:

29 in./HG

Specifications

Meets U.S.C.G. requirements

Tube:

Black, Nitrile, 55% aromatics (ORS)

Reinforcement:

High tensile tire cord plies; helix wire

Cover:

Black, Neoprene

Temperature:

-40°F to +190°F

Branding:

TEXCEL® TEX-OSD 250 - OIL SUCTION AND DISCHARGE HOSE 250 PSI W.P. MEETS USCG 33CFR 154.500

Colors:

Black

Options:

Cut Lengths Available.

I.D.	Part Number	O.D.	Standard Length	Bend Radius	Weight/ Foot	Request a Quote
(in.)		(in.)	(ft.)	(in.)	(lbs.)
2	OSD-2.0	2-15/16	100	8	2.15	Request Quote
3	OSD-3.0	4-1/4	100	11	3.41	Request Quote
4	OSD-4.0	5-5/16	100	15	4.87	Request Quote
6	OSD-6.0	7-3/8	100	25	8.18	Request Quote
8	OSD-8.0	9-3/4	100	31	14.35	Request Quote
10	OSD-10.0	12	40	36	20.49	Request Quote
12	OSD-12.0	14-1/8	40	40	26.49	Request Quote
