Texcel

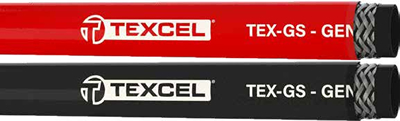

TEX-GS / General Service Air & Water Hose

Types:
Air and Multipurpose Hose

Vendor: Texcel

Application:

A tough, heavy-duty, abrasion and ozone-resistant general service hose. Designed for the transfer of air, mild chemicals and water across multiple applications. The ability to order this product in continuous lengths provides efficiently in inventory controls as well as ease of handling at job sites.

Safety Factor:

3:1

Packaging:

Coils are continuous lengths

Working Pressure:

250

Tube:

Black, EPDM

Reinforcement:

One or two braided polyester cords

Cover:

Red or Black*, SBR/EPDM

Temperature:

-20°F to +180°F

Packaging:

Reels or Coils

Branding:

TEXCEL® TEX-GS - GENERAL SERVICE AIR AND WATER --XXXPSI WP-LOT (white letters)

Lengths:

On ½” – 1” sizes that cannot be made to 600’, but are ordered at 600’, we will produce 2 – 300’ lengths. 1-1/4” X 300’ Reels will be made using 2- 150’ lengths. 1-1/2” x 250’ Reels will be made using a 100’ length a 150’ length. There will be no more than 3 pieces per reel and there will never be a piece that is shorter than 50’

Colors:

Red or Black

I.D. (in.)	Packaging	Part Number	Part Number	O.D. (in.)	Std. Length (ft.)	Weight (lbs./ft.)	Request a Quote (Red)	Request a Quote (Black)
1/4	Reel	GS-4-R250-600R	GS-4-B250-600B	33/64	600	0.12	Request Quote	Request Quote
1/4	Coil	GS-4-C250-200R	GS-4-C250-200B	33/64	200	0.12	Request Quote	Request Quote
5/ 16	Reel	GS-5-R250-600R	GS-5-B250-600B	19/32	600	0.15	Request Quote	Request Quote
3/8	Reel	GS-6-R250-600R	GS-6-B250-600B	43/64	600	0.19	Request Quote	Request Quote
3/8	Coil	GS-6-C250-200R	GS-6-C250-200B	43/64	200	0.19	Request Quote	Request Quote
1/2	Reel	GS-8-R250-600R	GS-8-B250-600B	53/64	600	0.26	Request Quote	Request Quote
1/2	Coil	GS-8-C250-200R	GS-8-C250-200B	53/64	200	0.26	Request Quote	Request Quote
5/8	Reel	GS-10-R250-600R	GS-10-B250-600B	63/64	600	0.33	Request Quote	Request Quote
3/4	Reel	GS-12-R250-600R	GS-12-B250-600B	1-9/64	600	0.45	Request Quote	Request Quote
3/4	Coil	GS-12-C250-50R	GS-12-C250-50B	1-9/64	50	0.45	Request Quote	Request Quote
3/4	Coil	GS-12-C250-200R	GS-12-C250-200B	1-9/64	200	0.45	Request Quote	Request Quote
1	Reel	GS-16-R250-400R	GS-16-B250-400B	1-27/64	400	0.60	Request Quote	Request Quote
1	Coil	GS-16-C250-50R	GS-16-C250-50B	1-27/64	50	0.60	Request Quote	Request Quote
1-1/4	Reel	GS-20-R250-300R	GS-20-B250-300B	1-47/64	300	0.86	Request Quote	Request Quote
1-1/2	Reel	GS-24-R250-250R	GS-24-B250-250B	2-8/64	250	1.37	Request Quote	Request Quote
2	Reel	GS-32-R250-200R	GS-32-B250-200B	2-38/64	200	1.61	Request Quote	Request Quote
