Goodyear/Veyance Technologies

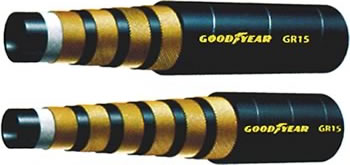

SAE 100R15 - GR15 / Very High Pressure

Types:
Hydraulic Hose
Oilfield

Vendor: Goodyear/Veyance Technologies

Application:

Designed specifically to handle severe, high pressure applications where pressure spikes or constant hydrostatic loads are present.

Meets or exceeds the performance requirements of: SAE 100R15 (except sizes 5/8" and 2" which are proprietary 6000 PSI hoses).

Meets Flame Resistance US MSHA Designation

SAE J1942/U.S. Coast Guard

ABS Type Approved

Tube:

Neoprene

Reinforcement:

Four alternating layers of spiralled high-tensile steel wire (sizes 1/2", 5/8", 3/4" & 1") and six alternating layers of spiralled high-tensile steel wire (sizes 1 1/4", 1 1/2" & 2")

Cover:

Black neoprene

Temperature:

-40°F to 250°F F (-40°C to 121°C)

Packaging:

Branding:

Continuous Brand Layline Example: Goodyear® GR15-08 SAE 100R15 1/2" (12.7mm) W.P. 6000 PSI (41.4 MPA) MSHA #

Couplings:

Contact JGB for proper fitting recommendation.

Category:

Very High Pressure

Part Number	Hose Size ID		Hose OD		Max. Working Pressure		Min. Bend Radius		Min. Burst Pressure		Weight	USCG Approved	Request a Quote
	In	Din Dash (mm)	In	mm	PSI	Mpa	In	mm	PSI	Mpa	lb/ft
GR15-08	1/2	12.7	1.06	26.8	6000	41.4	8.0	203	24000	165.5	0.59		Request a Quote
GR15-10	5/8	15.9	1.16	29.4	6000	41.4	10.0	254	24000	165.5	0.88	H	Request a Quote
GR15-12	3/4	19.0	1.27	32.2	6000	41.4	10.5	267	24000	165.5	1.08	H	Request a Quote
GR15-16	1	25.4	1.53	38.8	6000	41.4	13.0	330	24000	165.5	1.48	H	Request a Quote
GR15-20	1-1/4	31.8	1.96	49.8	6000	41.4	17.5	444	24000	165.5	2.40		Request a Quote
GR15-24	1-1/2	38.1	2.26	57.4	6000	41.4	21.0	533	24000	165.5	3.35		Request a Quote
GR15-32	2	50.8	2.89	73.5	6000	41.4	30.0	762	24000	165.5	4.75		Request a Quote
