Dixon Continuous Flow Reels
Vendor: Dixon Fire Equipment (Powhatan)
Coupling Type: Fire Hose Couplings
Description:
Female NPT Inlet - Male NST (NH) Outlet
Coupling Category:
Fire Equipment
Used to allow immediate and continuous flow of water at all times during
deployment of hose.
Can be easily operated by one person. Use with
non-collapsible hose (hose not included).
Standard Features:
|
| Part #
|

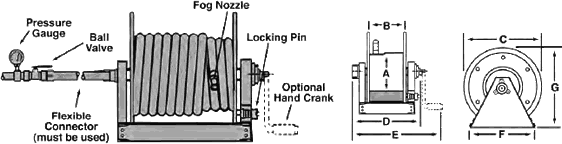

Hose Size and Capacity | Dimensions (inches) | Inlet Size | Outlet Size | wt. | ||||||||
| 3/4" | 1" | 1-1/2" | A | B | C | D | E | F | G | (inches) | (inches) | (lbs) | |
| CFR47-1-100 | 150 | 125 | ... | 10-1/2 | 11-1/2 | 24 | 19-1/4 | 24 | 21-3/4 | 26 | 1 | 1 | 53 |
| CFR47-150-100 | 250 | 150 | 100 | 10-1/2 | 20-1/2 | 24 | 28-1/4 | 33 | 21-3/4 | 26 | 1-1/2 | 1-1/2 | 60 |
| CFR47-1-200 | 400 | 300 | 150 | 10-1/2 | 28 | 24 | 35-3/4 | 40-1/2 | 21-3/4 | 26 | 1-1/2 | 1-1/2 | 64 |
| CFR47-150-200 | ... | ... | 200 | 10-1/2 | 34 | 24 | 41-3/4 | 46-1/2 | 21-3/4 | 26 | 1-1/2 | 1-1/2 | 72 |
Note: A flexible connector assembly must be installed directly between the hose reel inlet hub and the water supply.
Failure to use the flexible connector assembly shall void the warranty.
Optional Accessories
| Description | Part # |
| 1" x 18" flexible connector | DX2836 |
| I-1/2" x 18" flexible connector | DX2839 |
| hand crank | CFR-HC |
| repair kit (contains O-ring, PTFE retaining ring
for the inlet casting, spacer washer, 2 steel retaining rings for the manifold) |
CFR-RK |
Cover for Continuous Flow Hose Reels
| Cover for | Dimensions | Part # |
| CFR47-1-100 | 26" x 20" | CFR47-C1 |
| CFR47-1-200 | 26" x 36" | CFR47-C2 |
| CFR47-150-100 | 26" x 29" | CFR47-C3 |
| CFR47-150-200 | 26" x 42" | CFR47-C4 |
 |
