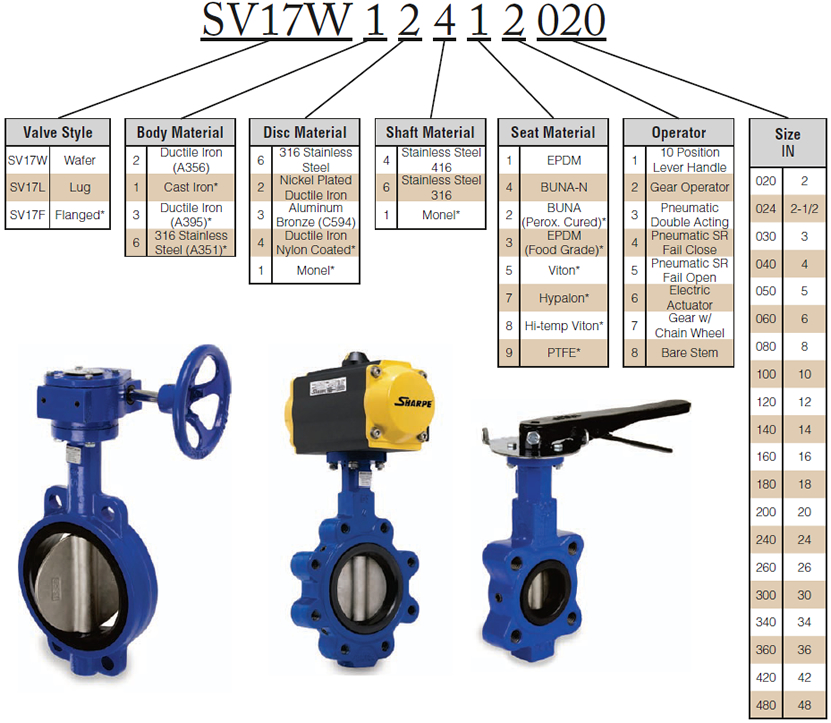

Series 17 Ductile Iron Body Butterfly Valve

Vendor: Smith-Cooper International

Valve Type(s):
Butterfly Valves
Sharpe Valves

Valve Description:

• 200 psi (2 - 12)
• 150 psi (14 & 16)
• Ductile iron body
• 316 stainless steel, nickel plated ductile iron, aluminum bronze, ductile iron nylon coated or monel disc
• EPDM, BUNA-N, BUNA (perox. cured), EPDM food grade, Viton, Hypalon, hi-temp Viton or PTFE seat
• Lug, wafer or flanged connections
• MSS SP - 67 and API 609 compliant
• MSS SP - 25 marking
• Self- lubricated bushings
• Blow-out proof shaft
• Epoxy coated
• Valves available with undercut discs to 50 psi
• ISO 5211 mounting pad
• For di-directional or dead end service
• Phenolic backed cartridge seat
• Stem extensions available

Valve Category:

Butterfly Valves

Valve Subcategory

Ductile Iron Butterfly Valves
