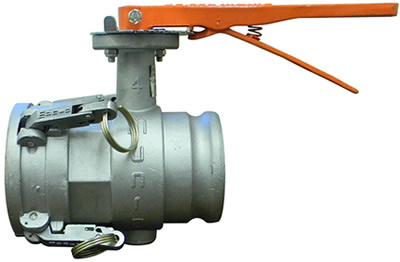

The 4" Munro Cam Valve

Traditional butterfly valve assemblies are heavy, time consuming to assemble and difficult to use. We applied our engineering expertise and 40 plus years of industry knowledge to design something better. The Munro Valve is 30% to 90% lighter, easier to use and dramatically reduces leaks.

Munro 4" Cam Valve Features and Benefits

Munro 4" Cam Valve Features and Benefits



1.Stainless steel square shaft design minimizes rounding or releasing of disk and increases torque potential for positive shut off.

2.Passive locking mechanism is available for added protection and peace of mind.
All valves are drilled for safety pin insertion

3.Four-handle style made of extra heavy-duty stainless steel reduces egg-shaping and ensures 360˚ mating.

4.NBR rubber lined to reduce leaks, even when abrasives are present.

5.Ductile iron electroplated disk reduces abrasion and oxidation.
Up to 90% lighter weight than valve assemblies. Total weight is 12lbs.
No pin - reduced leakage.
Drive area square shaft is positive closing.

Munro 4" Valve Dimensions

Munro 4" Valve Dimensions

No. Description Material
1 Gasket NBR
2 Body Aluminum
3 Disk Electroplated
4 Shaft Stainless Steel
5 Seat NBR
6 Bushing PTFE
7 "O" Ring NBR
8 Biset Ring Stainless Steel
9 Hang Lever D.I.




Please feel free to contact us for more information.
