VAC-5000
Series VAC-5000 Single Wrap
To handle 2" through 4" I.D. hose
- Heavy-duty reel for longer lengths and large diameters of vacuum hose through 4".
- Choose gear driven crank rewind or chain and sprocket drive powered by an electric, hydraulic or compressed air motor.
- Standard: 90° ball bearing swivel joint with female NPT threads.
- Single Wrap Configuration: use where width dimension is minimal, such as between cab and tank, mounted transverse to frame of truck.
- Provides effortless and fast rewinding and wrapping of hose.
- Easy access to hose from both sides of vehicle.
VAC-5000 Series Reel
(Standard Configuration Shown Hose not included)
When ordering power rewind models, insert following prefix in front of base model:
A = Air Rewind – Supplied with control valve and 18" air hose. EP = Electric Rewind (1/2 HP) – 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch but can be ordered separately. HD = Hydraulic Rewind – Not supplied with control valve.
A = Air Rewind – Supplied with control valve and 18" air hose. EP = Electric Rewind (1/2 HP) – 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch but can be ordered separately. HD = Hydraulic Rewind – Not supplied with control valve.
| BASE MODEL | CAPACITY OF REEL | APPROX. WEIGHT | |||
| Hose/Cable Size | ft. | m | lb. | kg. | |
| VAC-5319-56-58-30 | 2 ID | 50 | 15.2 | 390 | 176.9 |
| VAC-5319-64-66-30 | 2 ID | 75 | 22.9 | 410 | 186 |
| VAC-5319-70-72-30 | 2 ID | 100 | 30.5 | 420 | 190.5 |
| VAC-5420-62-64-30 | 3 ID | 50 | 15.2 | 415 | 188.2 |
| VAC-5420-74-76-30 | 3 ID | 75 | 22.9 | 430 | 195 |
| VAC-5420-80-82-30 | 3 ID | 100 | 30.5 | 438 | 198.7 |
| VAC-5420-68-70-30 | 4 ID | 50 | 15.2 | 422 | 191.4 |
VAC-5000 Reels
When ordering power rewind models, insert following prefix in front of base model:
A = Air Rewind – Supplied with control valve and 18" air hose. EP = Electric Rewind (1/2 HP) – 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch but can be ordered separately. HD = Hydraulic Rewind – Not supplied with control valve.
(1) Manual & Spring Reels; (2) Power Reels
A = Air Rewind – Supplied with control valve and 18" air hose. EP = Electric Rewind (1/2 HP) – 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch but can be ordered separately. HD = Hydraulic Rewind – Not supplied with control valve.

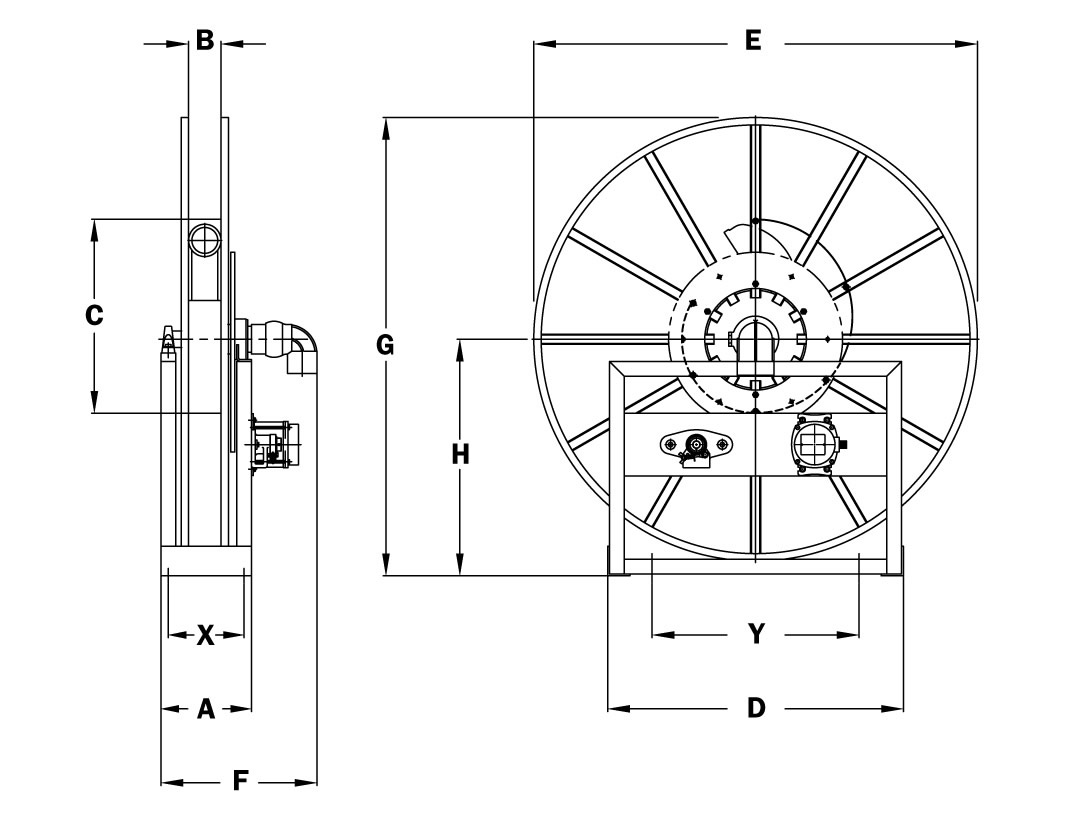

| BASE MODEL | REEL DIMENSIONS | |||||||||
| A | B | C | D | E2 | F2 | G | H | X | Y | |
| VAC-5319-56-58-30 | 12.25 | 4.38 | 30 | 40 | 56 | 22 | 58 | 30 | 10.25 | 28 |
| VAC-5319-64-66-30 | 12.25 | 4.38 | 30 | 40 | 64 | 22 | 66 | 34 | 10.25 | 28 |
| VAC-5319-70-72-30 | 12.25 | 4.38 | 30 | 40 | 70 | 22 | 72 | 37 | 10.25 | 28 |
| VAC-5420-62-64-30 | 13.5 | 5.63 | 30 | 40 | 62 | 25 | 64 | 33 | 11.5 | 28 |
| VAC-5420-74-76-30 | 13.5 | 5.63 | 30 | 40 | 74 | 28 | 76 | 39 | 11.5 | 28 |
| VAC-5420-80-82-30 | 13.5 | 5.63 | 30 | 40 | 80 | 25 | 82 | 42 | 11.5 | 28 |
| VAC-5420-68-70-30 | 13.5 | 5.63 | 30 | 40 | 68 | 25 | 70 | 36 | 11.5 | 28 |
- Specifications subject to change.
- When ordering power rewind models, prefix model number with:
A = Air Rewind – Supplied with control valve and 18" air hose.
EP = Electric Rewind (1/2 HP) – 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch but can be ordered separately.
HD = Hydraulic Rewind – Not supplied with control valve. - Clutch/reduction unit available upon request.
- Be sure to check dimensions and weights prior to ordering.
- NOTICE: A flexible connector must be used between the inlet pipe and the inlet swivel joint.
- X,Y indicate mounting holes.
